Craft Beer|Guide of CO2 Sterile Filtration Process for Craft Beer

Views: 185 Author: LOONG FILTRATION Publish Time: 2025-12-11 Origin: Site

Inquire

Craft Beer | CO2 Sterile Filtration Process for Craft Beer

In craft beer brewing, the requirement for purity is absolute. Carbon Dioxide (CO2), as a key medium for flavor, carbonation, and the filling process, its purity directly determines the final quality and shelf life of the beer. An efficient, reliable, and high-standard CO2 filter for craft beer system is a necessary investment for achieving excellent quality.

Why is Craft Beer CO2 Sterile Filtration So Crucial?

CO2 sterile filtration is the last critical line of defense for protecting craft beer quality, addressing the following core issues:

Aspect	Risk/Requirement
Microbial Contamination Risk	The CO2 gas source may carry microorganisms, yeast spores, or bacteria; unfiltered CO2 can directly contaminate the beer, leading to flavor changes, reduced shelf life, or product spoilage.
Regulatory and Food Safety Compliance	Craft beer falls under food production; all materials contacting the beer or CO2 must comply with FDA food-grade certification to prevent material migration contamination.
System Integrity and Endurance	The filter housing and cartridges must be able to withstand Steam-In-Place (SIP) sterilization requirements to prevent secondary contamination. The system must withstand saturated steam at 121°C (250°F) for 20 minutes to ensure the entire filtration path is sterile.

A Customer Case for Reference.:

Industry: Craft Beer Producer

Demand: ensure the absolute purity of the CO2 gas source, making CO2 filtration a crucial defense for protecting the final quality of the beer.

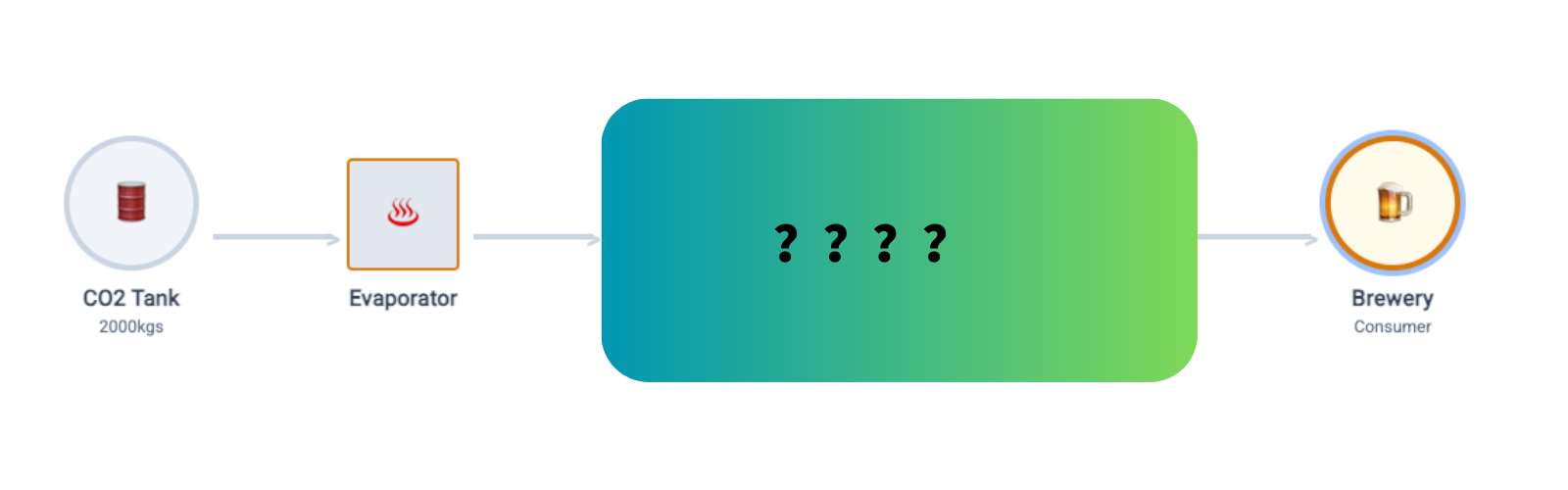

Exisitng Line: Liquid CO2 Holding Tank 2000kgs--->Evaporator---> ？？？----> Brewery

How Does LOONG Filtration Help them to Achieve Absolute Sterilizing Filtration for Craft Beer CO2?

To meet the rigid technical standard of CO2 sterile filtration—stable and reliable 0.01µm absolute filtration accuracy—we recommend a professional and verified three-stage filtration process based on the customer's existing flow.

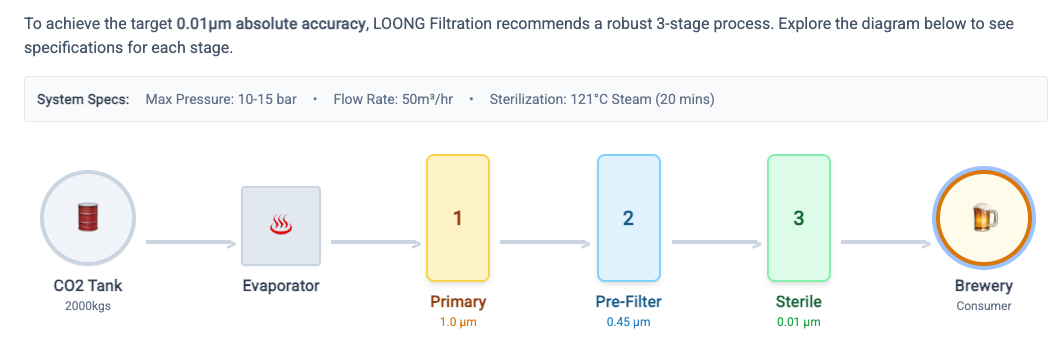

Liquid CO2 Holding Tank (2000kgs) → Evaporator → ① Primary Filter → ② Pre-Filter → ③ Sterile Filter → Brewery

craft beer CO2 filtration solution

Stage	Cartridge Type	Cartridge Material (MOC)	Filtration Rating	Function (Key to achieving the 0.01µm target)
① Primary Filter	Glass Fiber/Sintered SS Felt	Glass Fiber with Stainless Steel Core or Sintered Stainless Steel Felt	1.0 µm	Captures large particles, oil mist, and debris from compressor wear, protecting the lifespan of subsequent fine filters.
② Pre-Filter	PTFE Cartridge	Hydrophobic PTFE with Stainless Steel Core	0.45 µm	Further removes fine particles, while possessing excellent hydrophobicity to prevent water condensation and protect the final 0.01µm filter.
③ Sterile Filter	PTFE Cartridge	Hydrophobic PTFE with Stainless Steel Core	0.01 µm	Final barrier, providing absolute retention of bacteria, viruses, and ultra-fine contaminants, ensuring CO2 reaches sterile grade.

LOONG Filtration's Relevant Products by Filtration Process:

Glass Fiber Filter Cartridge(1.0um)

SS Sintered Felt Filter Cartridge(1.0um)

PTFE Filter Cartridge（0.45um）

PTFE Filter Cartridge（0.01um）

40. Stainless Steel Air&Gas Filter Housing (1)

SS Steel Air Filter Housing

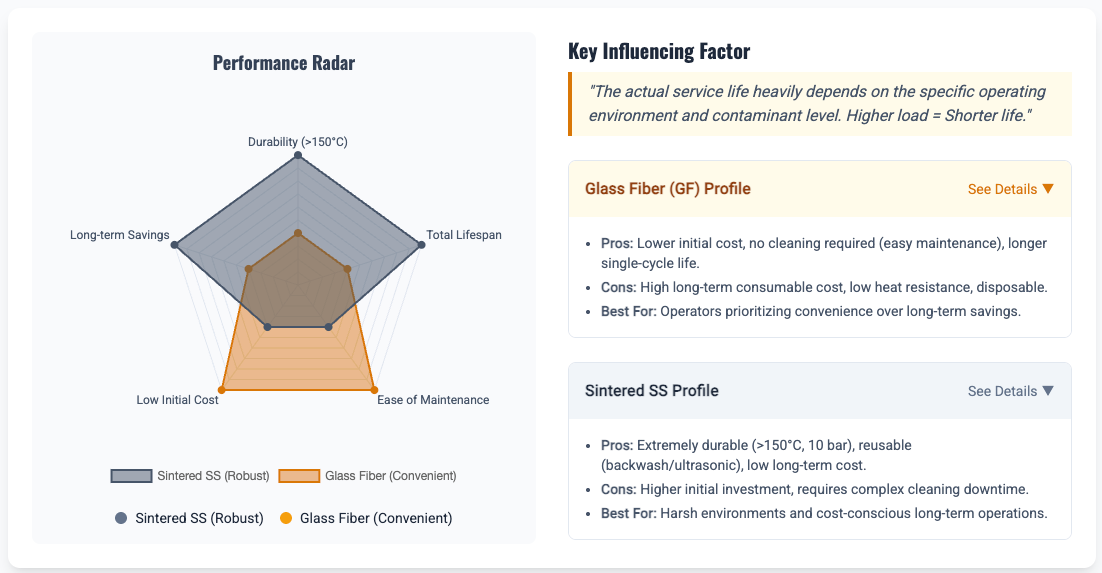

How to Choose Between Glass Fiber (GF) vs. Sintered Stainless Steel Felt (SS) for CO2 Primary Filtration?

In CO2 pre-filtration, the choice between Glass Fiber (GF) and Sintered Stainless Steel Felt (SS) cartridges is crucial as it affects the Total Cost of Ownership (TCO) and maintenance strategy. The selection should also be based on your specific production capacity.

Feature	Sintered Stainless Steel Felt Cartridge (SS Filter)	Glass Fiber Cartridge (GF Filter)
Single Cycle Service Life	Generally shorter than Glass Fiber cartridges at the same filtration rating.	Generally has a longer single-cycle service life at the same filtration rating.
Durability and Operating Conditions	Excellent durability. Can withstand high temperatures above 150°C and differential pressures up to 10 bar. High mechanical strength.	Significantly less heat resistant than stainless steel. Lower relative mechanical strength and pressure resistance.
Longevity and Maintenance (Ease of Maintenance)	Reusable, with extremely long overall lifespan.Can be regenerated through cleaning (e.g., backwashing, ultrasonic cleaning) and used for many years.	Backwashing is not recommended; must be directly replaced with a new cartridge when service life is reached.
Cost-Effectiveness (Economic Efficiency)	Higher initial investment, but potential for lower long-term operating costs due to reusability.	Lower initial purchase cost, but higher long-term consumable costs due to frequent replacement.
Maintenance Method	Requires regular downtime for cleaning and maintenance. The process might be more complex but saves on cartridge media.	Simple maintenance, no cleaning required;direct replacement when clogged. More convenient operation.
Customer Preference	Suitable for customers who prioritize long-term cost savings, operate in harsh environments (high temp/pressure), and don't mind the cleaning process.	Suitable for customers who prioritize operational convenience, wish to avoid the hassle of cleaning, and accept regular replacements.

Choose a Reliable Craft Beer Filtration Supplier

LOONG Filtration is a professional craft beer filter supplier and filter process designer from China, and a key partner in meeting all your performance, regulatory, and efficiency requirements. A quality supplier should offer the following advantages:

Absolute Accuracy Technical Guarantee
Food Safety and SIP Certification Compliance
High-Pressure Integrity and Economic Efficiency

Why LOONG Filtration?

LOONG Filtration is the best & profession craft beer filtration process designer and manufactuer. Our ability to provide this precise and reliable filtration solution stems from LOONG Filtration's deep foundation in food-grade precision filtration:

Material Science Expertise: Our deep understanding of filter media interaction (e.g., PTFE, PES, Nylon) with sensitive beverages like craft beer ensures the optimal selection for flavor preservation and performance.

Guaranteed Absolute Sterility: We utilize comprehensive integrity testing procedures, including Bubble Point and Diffusive Flow tests, on every batch of sterile cartridges. This rigorous factory inspection guarantees the stated "Absolute" rating is effective for microbial retention, confirming true sterility, not just nominal performance.

Hygienic & Compliant Manufacturing: Cartridges are assembled in highly clean environments under strict adherence to ISO 13785 & 9001 quality management systems, ensuring every product meets the highest standards for food-grade safety and compliance.

Proven Brewery Expertise: Our extensive project history and application library specifically within the beer filtration sector allow us to rapidly translate past successes into precise, reliable solutions tailored to any client's unique brewing scenario.

The implementation of this carefully engineered, multi-stage filtration system successfully met all the client's needs, resulting in a clearer, more stable, and fresh-tasting craft beer while significantly improving filtration efficiency and filter life cycle cost.
