Beer Wort Aeration| How to assure the Sterile, Oil-Free Oxygenation for craft beer

Views: 225 Author: LOONG FILTRATION Publish Time: 2025-12-16 Origin: Site

Inquire

Beer Wort Aeration| Guide to Wort Aeration Filtration System for Sterile, Oil-Free Oxygenation

Abstract: Why Does Wort Aeration Require the Highest Standard of Air Filtration?

In craft beer brewing, wort aeration is a crucial step before fermentation. Yeast requires oxygen to synthesize sterols and unsaturated fatty acids, which are key components for building healthy cell membranes. A healthy yeast population is the foundation for ensuring efficient fermentation, adequate attenuation, and consistent final beer quality.

However, if the compressed air used for aeration contains trace amounts of oil, moisture, or microorganisms, these contaminants will directly impact yeast vitality, or even introduce off-flavors or spoilage. This case study will detail how to specifically design a dedicated air filtration system for a small flow rate of 1–4 m³/hr and an operating pressure of 8 bar, ensuring the air supplied to the wort meets the highest standards of sterility, oil-free quality, and dryness.

Sterile Air filtration from China

Client Core Needs and Technical Parameter Analysis

The client's goal is to establish an independent, reliable secondary filtration system for their wort aeration process to supplement the existing main air compressor's filtration capacity while ensuring terminal sterility.

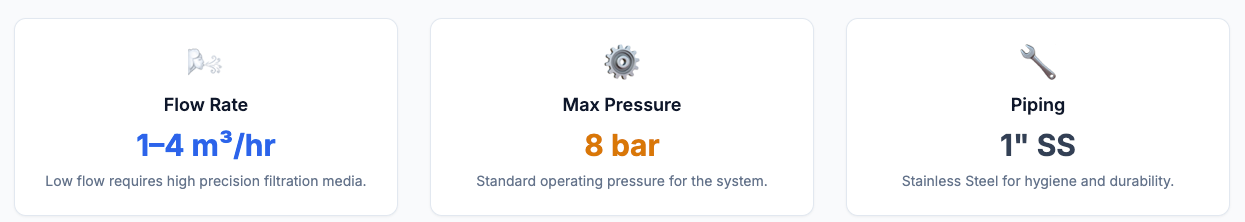

Parameter Item	Technical Requirements and Standards
Application Purpose	Wort Aeration (providing oxygen necessary for yeast cell growth)
Air Flow Rate	1 – 4 m³/hr (low flow, requiring high precision)
Piping Size	1” Stainless Steel
Maximum Working Pressure	8 bar
Core Requirements	1. Dedicated oil/water separator (to ensure completely dry air). 2. Dedicated sterile filter (must be able to withstand high-temperature steam sterilization).

Solution Design: The 3-Stage Filtration Shield

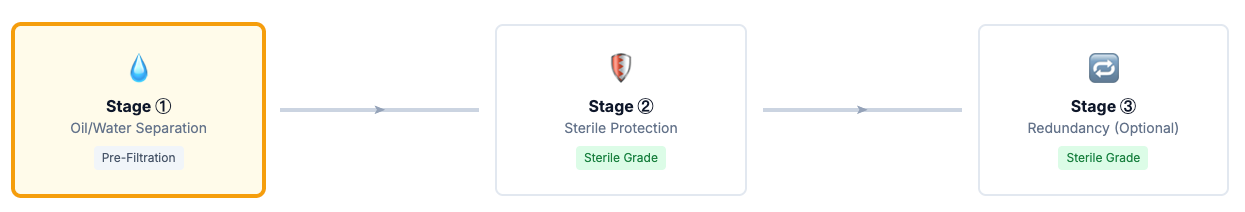

3 stage of Beer Wort Aeration filtration

1 stage of Beer Wort Aeration filtration

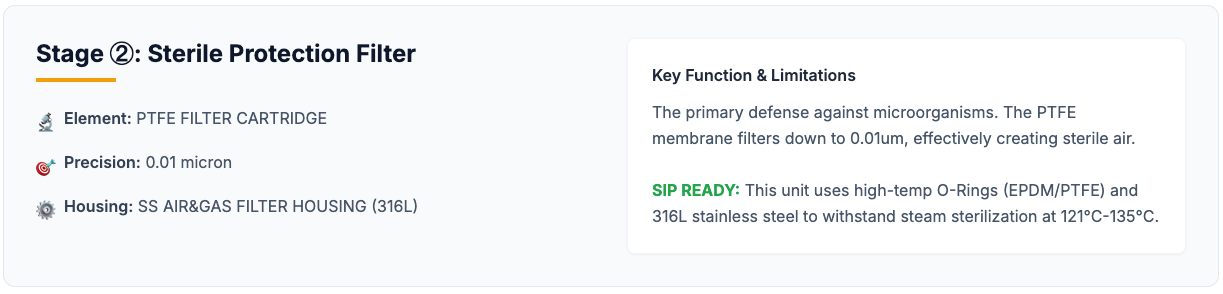

2 stage of Beer Wort Aeration filtration

the 3 stage of Beer Wort Aeration filtration

Solution Diagram (Assuming ①, ②, and ③ are in a serial structure)

No.	Component Name	Function Description	Filtration Precision/Characteristic
①	Oil/Water Separation Filter	Filter Element: H LEVEL ACTIVE CARBON MICRO OIL MIST FILTERFilter Housing: Oil-Water Separation Filter	0.01PPM
②	Sterile Protection Filter	Filter Element: PTFE FILTER CARTRIDGEFilter Housing: SS AIR&GAS FILTER HOUSING	0.01um
③	Sterilizing Filter (Supplemental)	Filter Element: PTFE FILTER CARTRIDGEFilter Housing: SS AIR&GAS FILTER HOUSING	0.01um

Understanding LOONG Filtration's Relevant Products Through the Filtration Process

ACTIVE CARBON MICRO OIL MIST FILTER

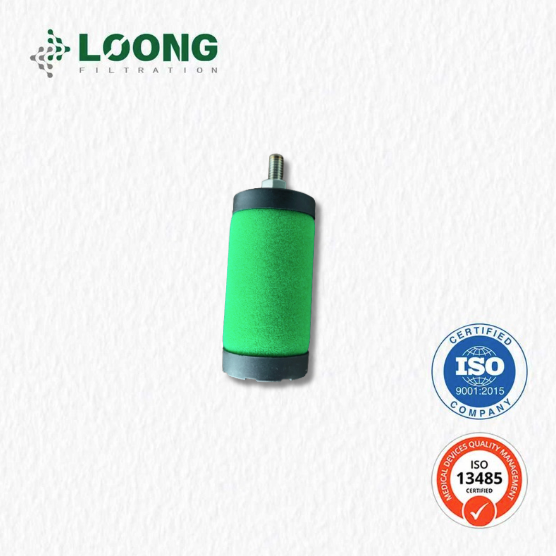

H LEVEL OIL-WATER FILTER CARTRIDGE

Oil-Water Separation Filter

SS COMPRESS AIR FILTER HOUSING

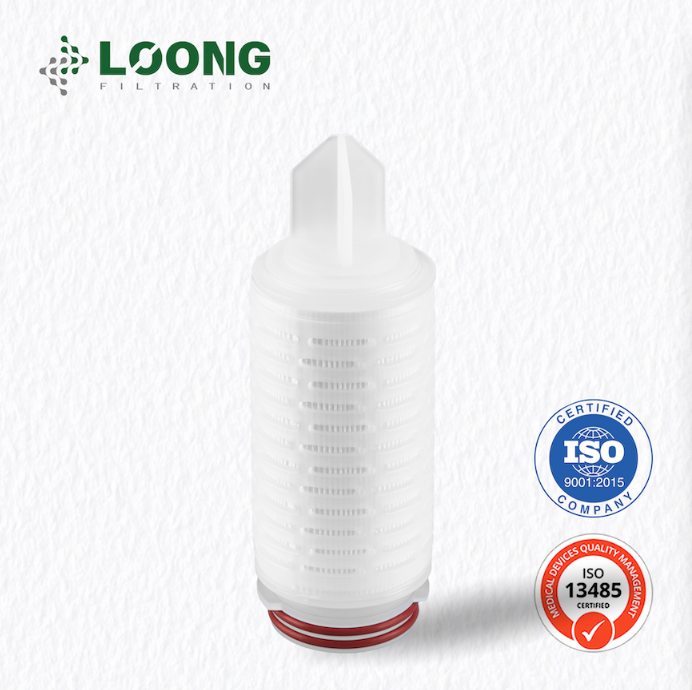

PTFE FILTER CARTRIDGE

SS AIR&GAS FILTER HOUSING

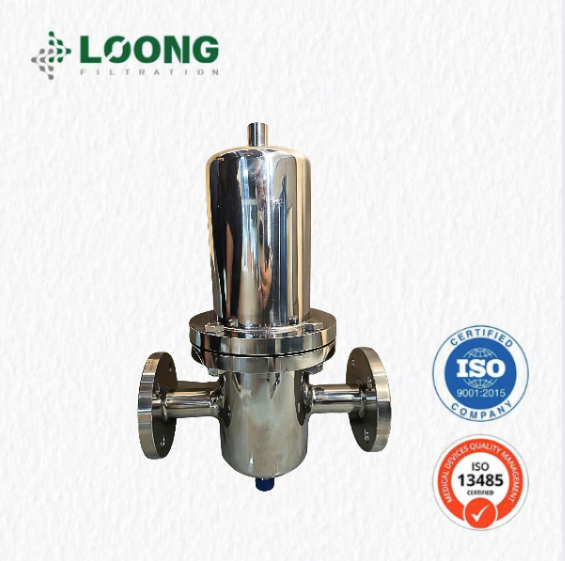

SS AIR FILTER HOUSING

Professional Explanation:

Maintenance and Sterility Assurance: The Importance of Steam Sterilization

Only sterile filters require and must undergo steam sterilization. This is a hygiene standard in the food and beverage industry, especially in beer brewing.

Component ① (Oil/Water Separator): Most high-performance oil/water separator filter elements cannot withstand continuous high-temperature steam sterilization. It is important to note that most oil-water separators are not designed to withstand high-temperature steam sterilization. The reason is that compressed air pipeline systems are generally complex, making Steam sterilization technically challenging, costly, and potentially risky.
Component ② (Sterile Filter): This component is the only critical point requiring sterilization. We recommend using:
Filter Element Material: Polytetrafluoroethylene (PTFE) must be a validated “Sterilizing Grade”.
Housing Design: A full stainless steel (316L) housing must be selected, and all O-Rings must use high-temperature resistant materials such as EPDM or PTFE to ensure structural integrity and sealing during steam sterilization at 121°C - 135°C.

Why Might a Client Choose an Extra Sterile Filter (Optional ③)?

As shown in the solution diagram, many clients choose to add an extra final sterile filter (Component ③ in the scheme), even if Component ② is already a high-precision pre-sterile filter.

Redundancy: To avoid the risk of contamination due to a single filter element failure or improper maintenance.
Extended Lifespan: Component ② (the Sterilizing Filter) absorbs the majority of microorganisms and particulates, significantly extending the service life and the running time between sterilizations of the more expensive Component ③ (the Sterilizing Filter).

Through this complete, steam-sterilizable filtration system, your craft beer will receive the purest air assurance, guaranteeing yeast health and ultimately brewing high-quality, contamination-free beer.

How to Choose a Reliable Craft Beer Filtration Supplier

LOONG Filtration is a professional craft beer filter supplier and filter process designer in China, which is key to meeting all your performance, regulatory, and efficiency requirements. A quality supplier should offer the following advantages:

Absolute Precision Technical Assurance
Food Safety and SIP Certification Compliance
High-Pressure Integrity and Economic Benefits

Upgrade Your Compressed Air Filtration System to Guarantee the Exceptional Quality of Your Craft Beer

By implementing the high-specification, sterile filtration system described above and choosing a craft beer air filtration supplier that can provide absolute precision and compliance assurance throughout the process, your craft beer will achieve exceptional quality, stable flavor, and a longer shelf life. Consult us immediately and upgrade your filtration system to safeguard your brewing process--sales@loongfiltration.com
