In the pharmaceutical industry, the quality of Active Pharmaceutical Ingredients (APIs) is directly related to the safety and efficacy of the final drug product. Filtration, being a critical step in the pharmaceutical manufacturing process, requires careful selection of filter cartridges. This article provides an in-depth exploration of the entire API filtration process, with a focused analysis on the advantages and applications of pleated filter cartridges, offering scientific cartridge selection guidance for pharmaceutical companies.
API filtration is typically divided into three main stages: coarse filtration, pre-filtration, and fine filtration. Each stage has its specific function and requirements:
• Function: To remove large particle impurities and insoluble substances from the API solution.

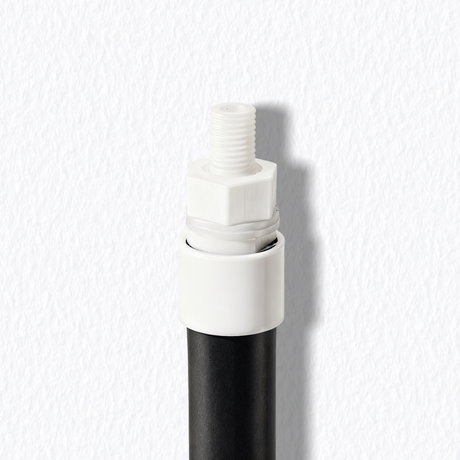

• Common Filter Media: Sintered rods, materials include polyethylene, polypropylene, nickel alloy, or titanium alloy.
• Pore Size Range: 5-140μm, with 20-30μm titanium rods recommended for their superior performance and service life.
• Function: To protect the fine filtration cartridges from clogging and extend their service life.
• Key Operational Point: The filtrate from each stage should not immediately proceed to the next; instead, it should be returned to the decolorization tank. It should only proceed to the next filtration stage after clarity is confirmed.
• Function: To ensure the purity of the API and meet sterile requirements.
• Pore Size Selection: Choose 0.22μm or 0.1μm cartridges based on whether the product requires sterility.

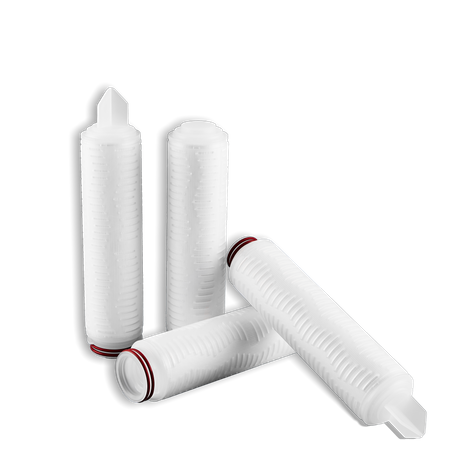

Due to their unique structure and performance characteristics, pleated filter cartridges have become the preferred choice in API filtration. Their main advantages include:
• Pleated filter cartridges offer a wide pore size range, from 1μm down to 0.1μm, meeting various precision requirements.
• For sterile APIs, 0.22μm and 0.1μm cartridges effectively remove microorganisms and particulate matter.
• The pleated design allows for a greater filtration surface area within a limited space, enhancing filtration efficiency and throughput.
• Pleated filter cartridges can be selected with different membrane materials based on the properties of the fluid being filtered, including hydrophilic, hydrophobic, and bi-philic membranes.
The choice of filter membrane material directly impacts the filtration effectiveness and the quality of the API. Based on fluid properties, membrane materials are categorized into three types:
• Materials: Cellulose (Regenerated Cellulose, Mixed Cellulose Ester), Nylon, Polyethersulfone.
• Application Scenarios: Suitable for water and aqueous solutions.
• Materials: Polytetrafluoroethylene (PTFE), Polycarbonate, PTFE-coated fine borosilicate fiber, Polyvinylidene Fluoride (PVDF).
• Application Scenarios: Suitable for organic solvents, acids, alkalis, chemical solutions, or gas filtration.
• Materials: Polysulfone, Polypropylene.
• Application Scenarios: Suitable for various types of fluids.
• 0.1μm and 0.22μm filter membranes possess dual functions of removing particles and sterilizing, making them suitable for sterile API filtration.
• 0.45μm and 0.65μm hydrophilic membranes can be used for particle removal and reducing bioburden, serving as a pre-treatment before sterilization.
• The filtered filtrate is used as a saturated or supersaturated solution for subsequent processes such as crystallization, freeze-drying, or spray-drying.
• During filtration, temperature and pressure must be strictly controlled to ensure the stability of the filtrate.
To address the diverse needs of API filtration, LOONG Filtration offers a range of efficient and reliable filtration products:
• Melt-Blown Cartridge Filters: Suitable for coarse and pre-filtration stages, offering high dirt holding capacity.
• String-Wound Cartridge Filters: Economical and practical for filtering high-viscosity liquids.
• PP Pleated Cartridge Filters: Feature high flow rates and long service life, suitable for fine filtration of various liquids.
• PTFE Pleated Cartridge Filters: Excellent chemical resistance, suitable for filtering highly corrosive liquids.
• Nylon Mesh Filter Bags: Used for removing large particle impurities, commonly employed in pre-treatment stages.
Pleated filter cartridges, with their high filtration precision, large surface area, and broad chemical compatibility, represent the ideal choice for API filtration. Pharmaceutical companies should scientifically select the appropriate cartridge type and membrane material based on the specific characteristics of the API and process requirements to ensure the quality and safety of the final product. As a leading brand in the filtration industry, LOONG Filtration is committed to providing comprehensive filtration solutions, supporting the high-quality development of the pharmaceutical sector.
