Selecting the correct stainless steel filter housing is a critical engineering decision that impacts process stability, maintenance labor, and long-term safety. While the filter element does the actual separation work, the housing is the backbone of the system. It ensures fluid containment, pressure integrity, and operational safety under varying conditions. A poor housing choice can lead to catastrophic leaks, frequent downtime, or dangerous seal failures. Conversely, a well-specified unit protects your downstream equipment and minimizes operator intervention.
Engineers and procurement managers often default to standard material grades without considering the broader operational context. This guide moves beyond basic 304 versus 316 comparisons to evaluate the structural, operational, and economic factors required for industrial and sanitary applications. We will explore how specific design features—from closure mechanisms to surface finishes—directly influence your total cost of ownership. You will learn how to balance initial capital expenditure with long-term operational efficiency, ensuring your filtration system performs reliably for decades.
Material Specificity: 316L is non-negotiable for high-chloride or high-temperature environments to prevent pitting corrosion; 304 suffices for standard non-aggressive fluids.
Operational Design: Quick-opening mechanisms (V-clamps/Swing bolts) significantly reduce Opex by cutting filter changeout time compared to standard bolted flanges.
Sizing Risks: Undersizing leads to excessive pressure drop and frequent maintenance; oversizing incurs unnecessary CapEx and footprint issues.
Integrity Testing: Verify manufacturers utilize hydrostatic (1.3x design pressure) or helium leak testing to ensure vessel safety before purchase.
The longevity of a filtration system begins with the metallurgy of the vessel. Unlike PVC or fiberglass, a stainless steel filter housing offers superior mechanical strength, but its chemical resistance relies heavily on selecting the correct grade. Ignoring the specific chemical interactions between the fluid and the steel alloy is a common cause of premature failure.
Understanding the nuance between stainless steel grades is essential for preventing corrosion-related leaks. The choice generally falls between 304 and 316L, but the decision must be data-driven based on fluid composition.
304 Stainless Steel: This is the workhorse of the filtration industry. It contains chromium and nickel, providing excellent oxidation resistance. We recommend 304 for freshwater systems, potable water lines, standard oils, and non-corrosive solvents. It handles weather exposure well but is vulnerable to specific chemical attacks.
316L Stainless Steel: The "L" stands for low carbon, which improves weldability, but the critical addition here is molybdenum (usually 2-3%). This element drastically improves resistance to chlorides. For saline solutions, seawater desalination (SWRO), high-chloride process water, or pharmaceutical applications, 316L is mandatory. It resists pitting and crevice corrosion, which are microscopic attacks that can perforate standard 304 steel in chloride-rich environments.
Material integrity is not just about chemical compatibility; it is also about handling physical forces. Industrial systems often subject vessels to stresses that plastic housings simply cannot survive.
Water Hammer Resistance: Systems controlled by fast-acting solenoid valves often experience pressure surges known as water hammer. These shock waves can shatter plastic casings or crack brittle fiberglass. Stainless steel possesses the ductility and tensile strength to absorb these spikes without structural failure. This resilience is vital for protecting facility personnel from high-pressure blowouts.
Temperature Tolerance: While steel handles heat well, the complete assembly relies on elastomers. You must evaluate the gasket compatibility alongside the steel grade. For applications exceeding 80°C (176°F), standard Buna-N gaskets may fail. We often specify Viton (FKM), EPDM, or PTFE (Teflon) to ensure the seal maintains integrity at temperatures often exceeding 150°C. A housing is only as robust as its weakest seal.
The texture of the internal steel surface dictates how easily the unit cleans and whether it harbors bacteria. This is often specified using Ra (Roughness Average) values.
| Application Sector | Recommended Finish | Reasoning |
| General Industrial (Cooling water, Petrochemicals) | Sandblasted / Bead-blasted | Cost-effective. Removes weld discoloration. Surface roughness is not a critical performance factor. |
| Food & Beverage (Brewing, Dairy) | Sanitary Polish ($Ra < 0.8\mu m$) | Prevents organic residue buildup. Allows for effective Clean-in-Place (CIP) cycles. |
| Pharmaceutical (WFI, Injectables) | Electropolished ($Ra < 0.4\mu m$) | Creates a passive, chromium-rich surface. Microscopically smooth to prevent any bacterial adhesion or biofilm formation. |
Operational efficiency is defined by how easily operators can access the filter media. In high-throughput facilities, filter changeouts might happen daily. If the housing design makes this process difficult, labor costs skyrocket and safety risks increase.
The method used to seal the vessel lid is one of the most significant differentiators in housing design.
V-Clamp/Quick-Open: This design utilizes a heavy-duty band clamp secured by a single tightening knob or lever. It is ideal for low-to-medium pressure applications where frequent changeouts are required. Operators can open the vessel in seconds without tools. This reduces downtime significantly compared to traditional methods.
Swing Bolts: This mechanism represents the best balance between high-pressure safety and ease of access. Heavy-duty bolts are hinged on the vessel collar. To open, you loosen the nut and swing the bolt aside rather than removing it completely. This prevents lost hardware—a common issue on maintenance decks—and allows for higher pressure ratings than V-clamps.
Bolted Flanges: This traditional design requires removing a ring of individual hex bolts. While it incurs the highest maintenance labor costs (taking 20+ minutes to open), it is often required for ultra-high pressure or lethal service where ASME code dictates specific closure strengths.
How fluid enters the vessel affects both filtration efficiency and plumbing layout.
Top-In Design: In this configuration, fluid enters through the lid and flows directly down into the filter bag. This provides superior sealing because the pressure of the fluid actively presses the bag collar into the seat, minimizing the risk of unfiltered liquid bypass. It creates a 360-degree seal naturally.
Side-In Design: The inlet is located on the side of the shell body. The fluid must travel up and over the filter rim. While often easier to plumb into existing horizontal pipe runs (reducing headroom requirements), it requires careful cleaning. The internal elbow or "gooseneck" can trap contaminants, making it harder to clean thoroughly between batches compared to the straight path of a top-in unit.
Selecting the right internal configuration depends heavily on the contaminant load and the target precision.
For applications with high solid loads or batch processing, a stainless steel bag filter housing is generally the superior choice. Bags are robust, hold a large volume of sludge, and are easy to dispose of. However, you must evaluate the internal basket strength. Cheap housings use flimsy baskets that can collapse under high differential pressure, ruining the process.
Conversely, cartridge housings are preferable for polishing applications where sub-micron filtration is necessary. Cartridges offer a much higher surface area per footprint due to pleating, making them ideal for final product clarity in water treatment or beverage production.

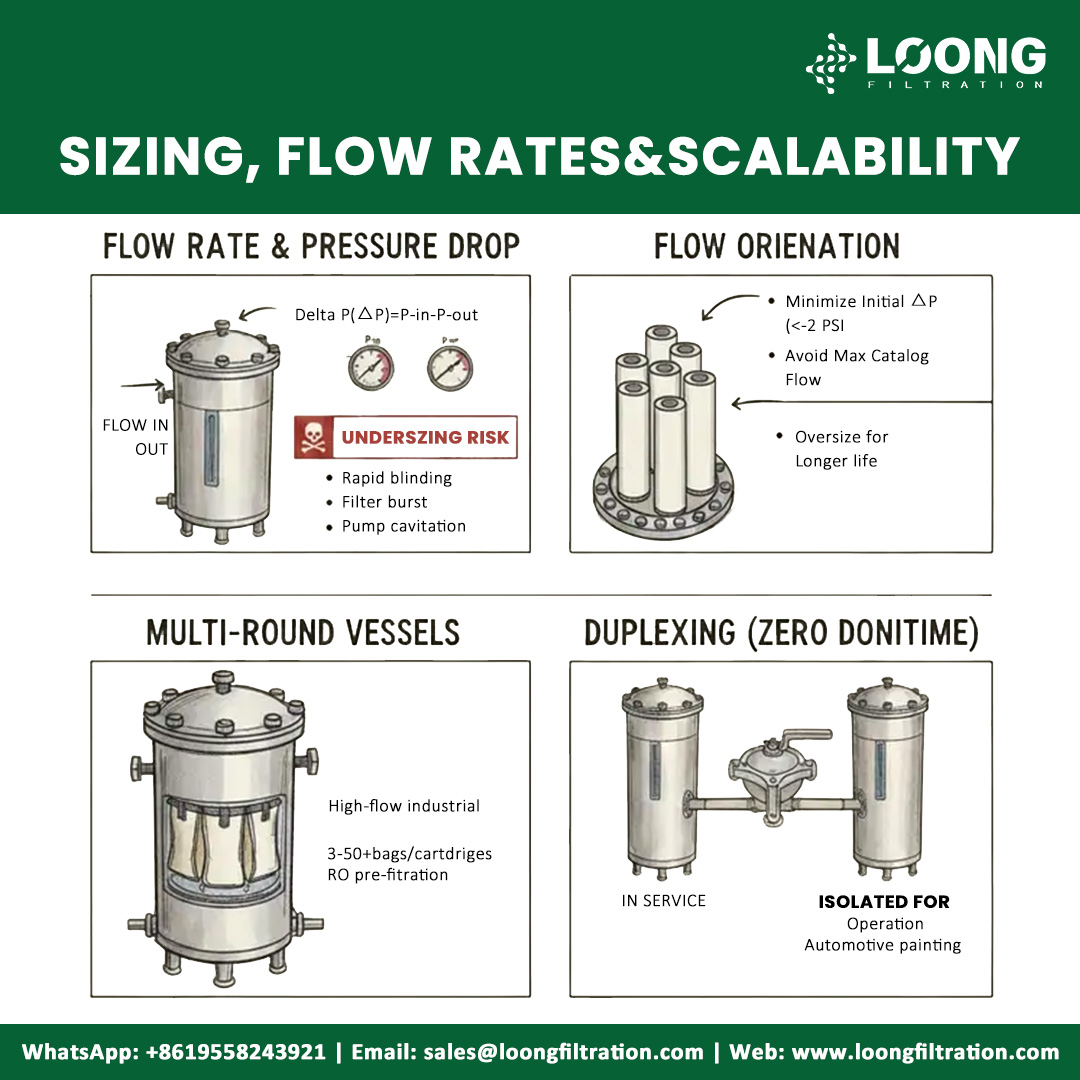

Proper sizing is an exercise in fluid dynamics, not just port matching. A common error is selecting a housing based on the pipe size (e.g., buying a 2-inch housing because you have a 2-inch pipe) rather than the process flow parameters.
Every housing imposes a resistance to flow, known as pressure drop or Delta P. The goal is to minimize this initial drop.
Avoid sizing based solely on the "maximum port flow" listed in a catalog. If a housing is rated for 100 GPM max, running it at 95 GPM is risky. At near-capacity flow, the velocity inside the vessel is high, leading to turbulence and increased stress on the filter element. Instead, size the housing to handle your target flow rate at a low initial pressure drop (ideally < 2-3 PSI). This "oversizing" relative to flow capacity extends filter life significantly because you start with more available pressure headroom before the filter blinds off.
The Undersizing Risk: Choosing a vessel that is too small leads to rapid blinding of filters. Operators will be forced to stop production frequently for replacements. In severe cases, high differential pressure across a clogged, undersized filter can cause pump cavitation or even cause the filter element to burst, sending contaminants downstream.
As production scales, single-round housings often become bottlenecks.
Multi-Round/Multi-Bag Vessels: These large vessels contain plates that hold anywhere from 3 to 50+ cartridges or bags simultaneously. They are necessary for high-flow industrial streams, such as Reverse Osmosis (RO) pre-filtration or cooling tower loops, where flow rates exceed hundreds of gallons per minute.
Duplexing: This involves installing two identical housings in parallel, connected by a 3-way diverter valve. It allows one unit to remain in operation while the other is isolated for cleaning. This setup ensures zero downtime, which is critical for continuous manufacturing processes like automotive painting or chemical synthesis.
Because these housings are pressurized vessels, manufacturing quality is a safety issue. A weld failure under pressure can result in injury or significant facility damage.
Regulatory compliance varies by region and pressure rating. For standard industrial use (typically under 100 PSI), verify that the stainless steel filter housing manufacturer adheres to general industrial pressure standards and Good Engineering Practice (GEP).
However, for high-pressure applications (often >150 PSI) or when handling hazardous media, you must require certification. In the United States, this is the ASME Section VIII Div 1 certification ("U" Stamp). In Europe, the Pressure Equipment Directive (PED) applies. These certifications ensure that the design calculations, material traceability, and welding procedures have been audited by a third party.
Never assume a housing is leak-free just because it looks solid. Reputable manufacturers perform rigorous testing before shipping.
Hydrostatic Testing: This is the industry baseline. The vessel is filled with water and pressurized to 1.3x or 1.5x its maximum operating pressure. This test verifies structural integrity and ensures the vessel will not deform or burst during pressure spikes.
Helium Leak Detection: For high-purity gas or ultra-critical liquid applications (like semiconductor manufacturing), water testing is insufficient. Helium leak testing detects microscopic leak paths that water molecules might not penetrate. If your process requires absolute containment, ask for this validation.
The quality of the welds dictates the corrosion resistance of the seams. You should inspect for full penetration welds. Furthermore, post-weld treatment is vital. Welds must undergo passivation to remove free iron left during the fabrication process. Improper passivation leads to "rouging," a form of surface rust that can appear even on stainless steel filter housing manufacturers' best 316L units if the surface treatment was neglected.
Price is what you pay; cost is what you spend over time. Procurement decisions often fixate on the sticker price of the housing, ignoring the operational reality.
To understand the true value, you must calculate the CapEx (Capital Expenditure) versus the OpEx (Operational Expenditure).
CapEx includes the housing unit, valves, gauges, and initial installation. OpEx includes the frequency of filter replacement multiplied by the cost of media and the labor rate. Consider this scenario: A budget-friendly housing uses a standard bolted flange closure. It takes two operators 30 minutes to unbolt, change filters, and re-torque the bolts. A premium quick-open unit takes one operator 5 minutes. If you change filters weekly, the "cheaper" bolted housing could cost thousands more in labor over a 5-year period compared to the quick-open unit.
Installation costs can also balloon if connection types are mismatched. Always verify inlet/outlet standards—NPT and BSP threads are common for small vessels, while ANSI Flanges or Sanitary Tri-Clamps are standard for larger lines.
Additionally, check for auxiliary ports. A well-designed housing should include dedicated ports for venting and draining. Vent ports allow for the safe release of trapped air before opening the vessel (critical for safety), and drain ports ensure complete evacuation of valuable or hazardous fluids before the housing is opened. The absence of these ports often necessitates expensive on-site modifications.
Investing in a high-quality stainless steel filter housing is an investment in system reliability. It is the static defense that allows your dynamic filtration media to perform efficiently. By prioritizing material compatibility (choosing 316L for harsh environments), selecting labor-saving closure mechanisms (like swing bolts or V-clamps), and insisting on verified manufacturing standards (hydrostatic testing), buyers can prevent catastrophic leaks and minimize operator labor.
Don't let the housing be the weak link in your process. Look beyond the initial purchase price and consider the decades of maintenance, safety, and operational stability that a properly specified vessel provides. Whether for sanitary pharmaceutical lines or rugged industrial water treatment, the right housing ensures consistent product quality and safety.
A: Stainless steel is required when operating pressures exceed 100 PSI, temperatures exceed 80°C, or when the system experiences water hammer (pressure surges). It is also mandatory for sanitary applications requiring steam sterilization, as plastic cannot withstand the heat or pressure cycles without deforming or cracking.
A: 304 is the industry standard for freshwater and non-corrosive fluids. 316 (or 316L) contains molybdenum, making it resistant to chlorides (saltwater) and acidic environments, preventing pitting corrosion. If your fluid contains high salt or chlorides, 316L is necessary to prevent leaks.
A: Use stainless steel bag filter housings for bulk removal of solids and high flow rates where absolute precision is less critical (e.g., wastewater, paints). Use cartridge housings for fine filtration (sub-micron), polishing, and final product clarity, as cartridges offer higher surface area and finer micron ratings.
A: In food, beverage, and pharmaceutical applications, a rough surface can trap bacteria and make cleaning difficult. An electropolished or sanitary finish ensures the housing has no microscopic crevices, allowing it to be effectively sanitized during Clean-in-Place (CIP) cycles.
