Selecting the correct filtration hardware is rarely as simple as matching pipe sizes. A poorly specified vessel often leads to expensive operational headaches, ranging from fluid bypass and corrosion-induced product contamination to excessive downtime during routine changeouts. While flow rate requirements typically dictate the initial search, the "right" housing is ultimately defined by chemical compatibility, ergonomic safety, and strict adherence to compliance standards like ASME or FDA regulations. Engineers and procurement officers must look beyond the sticker price to evaluate the Total Cost of Ownership (TCO).
This guide provides a decision framework for evaluating stainless steel filter housing options. We move past basic specifications to analyze how material grades, closure mechanisms, and internal configurations impact your process efficiency. You will learn how to balance upfront Capital Expenditure (CapEx) with long-term Operational Expenditure (OpEx), ensuring your filtration system functions as a reliable asset rather than a maintenance bottleneck.
Material Grade Matters: 304 is standard, but 316L is non-negotiable for high-chloride or sanitary environments to prevent pitting.
Closure Mechanism = Labor Cost: Swing-bolt designs reduce changeout time significantly compared to standard flanges but require specific pressure safety checks.
Size for TCO, Not Just Flow: Oversizing housings can reduce pressure drop and extend cartridge life, lowering long-term consumables costs.
Certification is Safety: For pressures >150 PSI or hazardous media, ASME code stamping is a critical insurance policy, not just a badge.
The structural integrity of your filtration system depends entirely on the metallurgy selected during the specification phase. While stainless steel is generically praised for corrosion resistance, the distinction between grades determines whether a vessel lasts twenty years or fails within two.
For standard industrial applications, 304 stainless steel serves as the cost-effective baseline. It performs reliably in municipal water systems, non-corrosive coolants, and standard lubricating oils. However, it lacks the chemical resilience required for aggressive environments.
In contrast, 316 and 316L stainless steel are imperative for harsh conditions. The addition of Molybdenum (typically 2-3%) dramatically increases resistance to pitting and crevice corrosion. This is non-negotiable for high-salinity water, such as desalination intakes, or high-temperature chemical processing. 316L, the low-carbon variant, further prevents carbide precipitation during welding, maintaining corrosion resistance at the weld seams.
| Parameter | 304 Stainless Steel | 316L Stainless Steel |
| Primary Alloy | Chromium-Nickel | Chromium-Nickel-Molybdenum |
| Chloride Tolerance | Low (< 200 ppm recommended) | High (> 1000 ppm recommended) |
| Cost Basis | Economical (Base) | Premium (~20-30% higher) |
| Best Application | Fresh water, oils, solvents | Pharmaceuticals, saltwater, acids |
Decision Matrix: If your process fluid contains chloride levels exceeding 1000ppm or operates at temperatures above 60°C, you must prioritize 316L to avoid rapid structural failure.
The physical texture of the steel affects both cleanability and biological safety. A standard bead blast finish provides a uniform, matte appearance sufficient for general utilities where sterility is not a concern. However, rough surfaces can trap particulate matter.
For sanitary applications in Food & Beverage or Pharmaceuticals, an electropolished finish (typically Ra < 0.4µm) is critical. This electrochemical process smoothes microscopic peaks and valleys, preventing biofilm adhesion and facilitating effective Clean-in-Place (CIP) cycles. Furthermore, ensure your manufacturer performs passivation. This chemical treatment removes free iron left from machining and restores the protective oxide layer, preventing premature rust.
Proper sizing involves more than matching the inlet pipe diameter. It requires a calculation of "flux rate"—the flow per unit of filter area. Optimizing this ratio is key to reducing consumable costs.
Single cartridge housings suit Point-of-Use (POU) applications or low-flow pilot lines. They are compact and inexpensive but offer limited dirt-holding capacity. When flow rates increase, scaling up to a multi-cartridge (cluster) housing is essential.
The engineering trade-off here focuses on face velocity. By spreading the flow across more cartridges in a cluster housing, you reduce the velocity of fluid hitting the filter media. This reduction increases contaminant retention and delays the spike in differential pressure. Consequently, oversizing your housing slightly can double the life of your filter cartridges, significantly lowering OpEx.
Selecting between bag and cartridge designs depends on the filtration goal. Bag housings excel at "gross filtration" and high dirt loading. They are robust, easy to service, and offer a lower cost per changeout for bulk removal. Cartridge filter housings are required for precision filtration (sub-micron) and polishing applications where effluent quality is paramount.
Internal volume affects process dynamics. For analytical sampling systems, a smaller housing volume is preferable because it ensures a faster response time; fresh fluid reaches the sensor quicker. Conversely, for continuous process streams, a larger volume is advantageous as it minimizes pressure drop and creates a buffer for flow fluctuations.
The method used to seal the housing dictates the speed of maintenance and the safety of operators. This feature directly impacts labor costs over the lifespan of the equipment.
Band clamps represent the lowest cost option. They are lightweight and require no tools for access. These are best suited for light-duty, low-pressure commercial applications. However, they carry operational risks. Sealing them perfectly at higher pressures can be difficult, and the clamps are prone to deformation after repeated tightening cycles, leading to potential leaks.
Swing bolts are the industrial standard for a reason. Heavy-duty hinged bolts allow operators to open the vessel quickly without removing the hardware entirely. This design prevents the common issue of lost nuts or washers during maintenance. From an ROI perspective, swing bolts drastically reduce downtime. If a filter changeout takes 10 minutes instead of 45 minutes, the labor savings accumulate rapidly.
For extremely high-pressure applications or hazardous fluids, safety overrides convenience. Flanged top closures use standard bolting circles to ensure a robust seal. While they take longer to open, they provide the highest level of containment security.
Regardless of the closure type, safety protocols are mandatory. Specify housings with integrated vent valves and pressure relief ports. Operators must be able to verify that the vessel is fully depressurized before attempting to open the closure mechanism to prevent injury.
How the housing connects to your piping system influences installation costs and leak potential. The orientation also affects how easily the system drains during shutdowns.

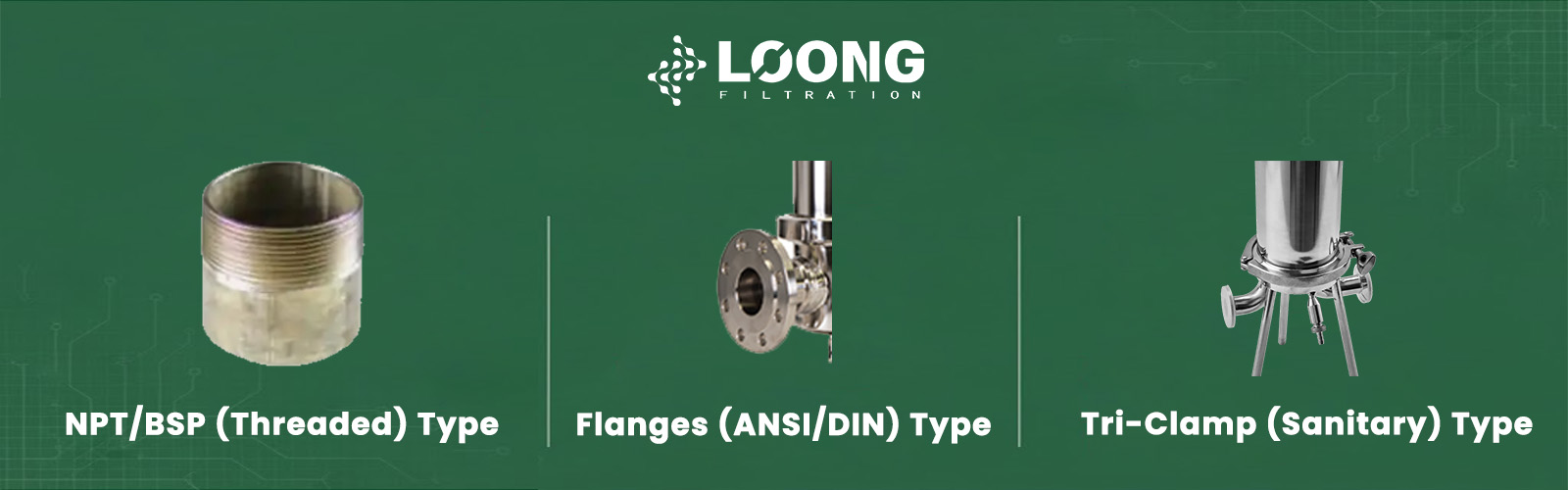

NPT/BSP (Threaded): Common for lines under 2 inches. Be cautious with stainless steel threads, as they are prone to galling. Over-tightening can cause permanent damage or leakage.
Flanges (ANSI/DIN): The preferred method for industrial setups larger than 2 inches. Flanges provide a rigid, leak-free integration that withstands pipe vibration and thermal expansion better than threads.
Tri-Clamp (Sanitary): Mandatory for hygienic sectors. These connections allow for rapid disassembly for cleaning and inspection, ensuring no bacteria accumulate in threaded crevices.
Inline orientations (Inlet and Outlet on the same axis) save floor space and simplify piping runs. However, consider the drainage requirements. A Side-In/Bottom-Out orientation allows for complete gravity draining of the vessel. This is crucial for batch processing to prevent cross-contamination between batches. Side-outlet designs often leave a "heel" of liquid at the bottom of the housing which must be manually siphoned or tolerated.

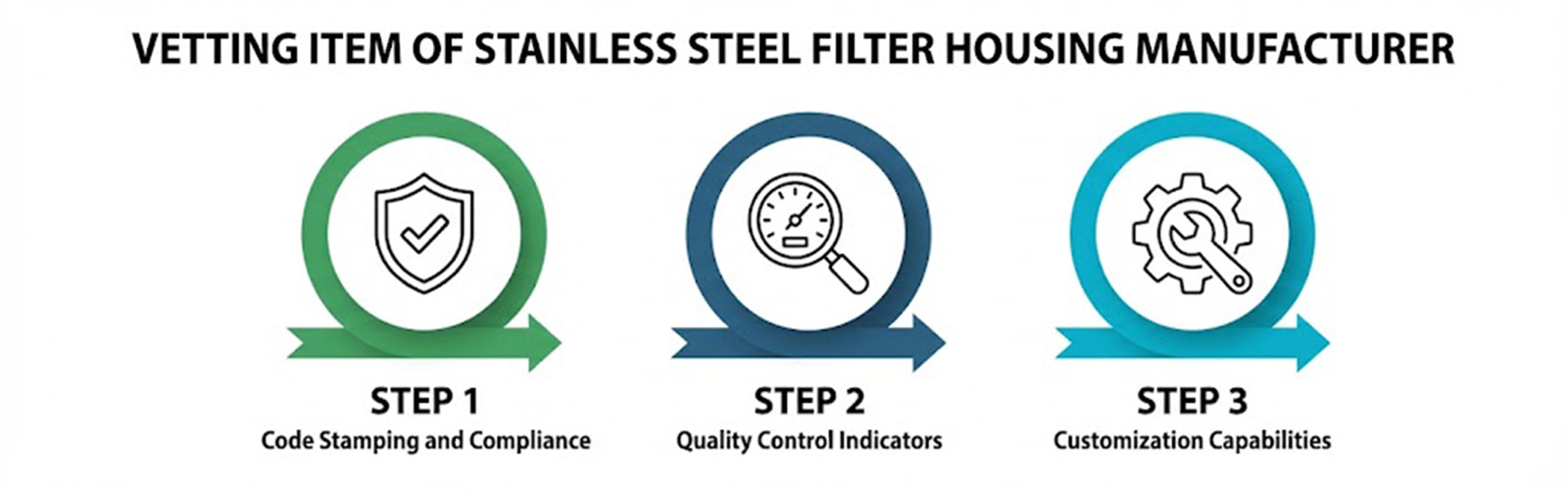

Not all stainless steel is fabricated equally. When evaluating a potential stainless steel filter housing manufacturer, you must look for specific quality control indicators that separate engineering partners from generic distributors.
Regulatory adherence is a major differentiator. The ASME Code (U-Stamp) is often legally required for vessels operating above 15 PSI and exceeding 6 inches in diameter in many jurisdictions. Even if not legally mandated, an ASME stamp serves as a quality benchmark. Additionally, for food or pharma applications, inspect the O-ring materials. Ensure gaskets (EPDM, Viton, PTFE) are FDA compliant or USP Class VI certified, as the steel housing is only as safe as its seals.
Ask specifically about testing protocols. A reputable manufacturer performs hydrostatic testing on every unit, typically at 1.3x or 1.5x the maximum operating pressure, to guarantee structural integrity. Furthermore, inspect the weld quality. Look for full-penetration welds rather than crevice-prone spot welds. Poor welding creates niches where corrosion begins and bacteria thrive.
Standard off-the-shelf products do not fit every process. The ability to modify designs—adding gauge ports, differential pressure (dP) indicators, or adjusting leg heights—is valuable. These customizations ensure the housing fits your physical space and provides the necessary data for monitoring filter performance.
Selecting the right filtration housing is an exercise in balancing three critical factors: chemical compatibility (Material), maintenance budget (Closure type), and process efficiency (Sizing). A mismatched housing can become a perpetual liability, costing thousands in wasted labor and ruined product.
Do not value-engineer the housing to the point of failure. A stainless steel housing is a 10+ year asset. Choosing the wrong grade or a cheap closure mechanism will cost significantly more in labor hours and corrosion repairs than the initial savings. We encourage you to audit your current process parameters—specifically maximum pressure, temperature, and chemical composition—before requesting a quote. This data-driven approach ensures you invest in a solution that protects both your product and your bottom line.
If you want to know more details about filtering housing, please feel free to contact LOONG Filtration. Our service team is ready to provide the support in any time.
A: Choose 316L if your fluid contains high chlorides (like saltwater), acids, or if the housing will be exposed to high-temperature sanitation cycles, as it offers superior corrosion resistance.
A: Band clamps are economical and suitable for lower pressures, while swing bolts are designed for higher pressures and frequent maintenance, offering faster, safer access without loose parts.
A: It depends on your local regulations and insurance requirements. Generally, for industrial applications operating above 15 PSI with hazardous media or large volumes, ASME certification is recommended or required for safety.
A: Ensure the housing features a precision-machined seal surface and a hold-down plate or spring assembly that firmly compresses the cartridge, preventing fluid from slipping past the filter media.
