Coconut Water | How to Solve the Clarification Filtration Challenge to Improve Beverage Clarity and Quality

LOONG Filtration & Premium Organic Tropical Beverage Manufacturer

I. Customer Challenge & In-Depth Needs Analysis

1.1 Customer Background

A premium organic tropical food manufacturer and exporter from Sri Lanka has established a strong global presence through high-quality coconut-based products, including King Coconut Water, coconut oil, coconut milk, and other natural agricultural products.

As consumer demand for clean-label and natural beverages continues to grow, maintaining consistent product appearance, stability, and quality has become increasingly important for beverage manufacturers.

For coconut water production, the clarification filtration stage plays a critical role before final filling. Although coconut water is naturally clear, fine suspended particles, natural residues, and small insoluble components may remain after processing, affecting visual appearance and long-term product stability.

The customer required an advanced coconut water filtration solution to improve clarification performance while maintaining production efficiency and food-grade processing standards.

1.2 Coconut Water Product Characteristics

Coconut water is a natural beverage containing minerals, organic compounds, and fine plant-derived particles. Due to its natural composition, filtration requirements are different from conventional water purification.

The filtration process needs to balance:

• Effective removal of fine particles

• Maintaining beverage quality

• Avoiding excessive product loss

• Ensuring compatibility with food processing conditions

1.3 Existing Filtration Process & Operating Conditions

The customer's existing production process follows:

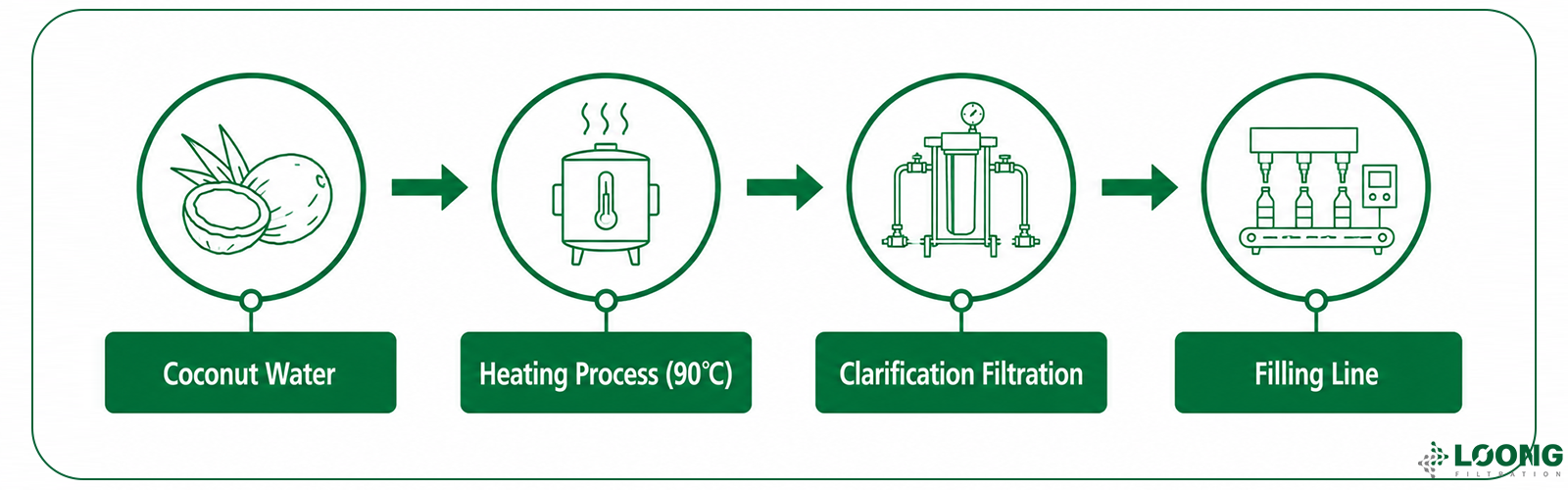

Coconut Water Heating → Clarification Filtration → Filling Line

The coconut water is heated to approximately 90℃ before entering the clarification filtration stage.

The filtration system must therefore provide stable performance under beverage processing conditions while maintaining hygienic operation.

Operating Condition Summary

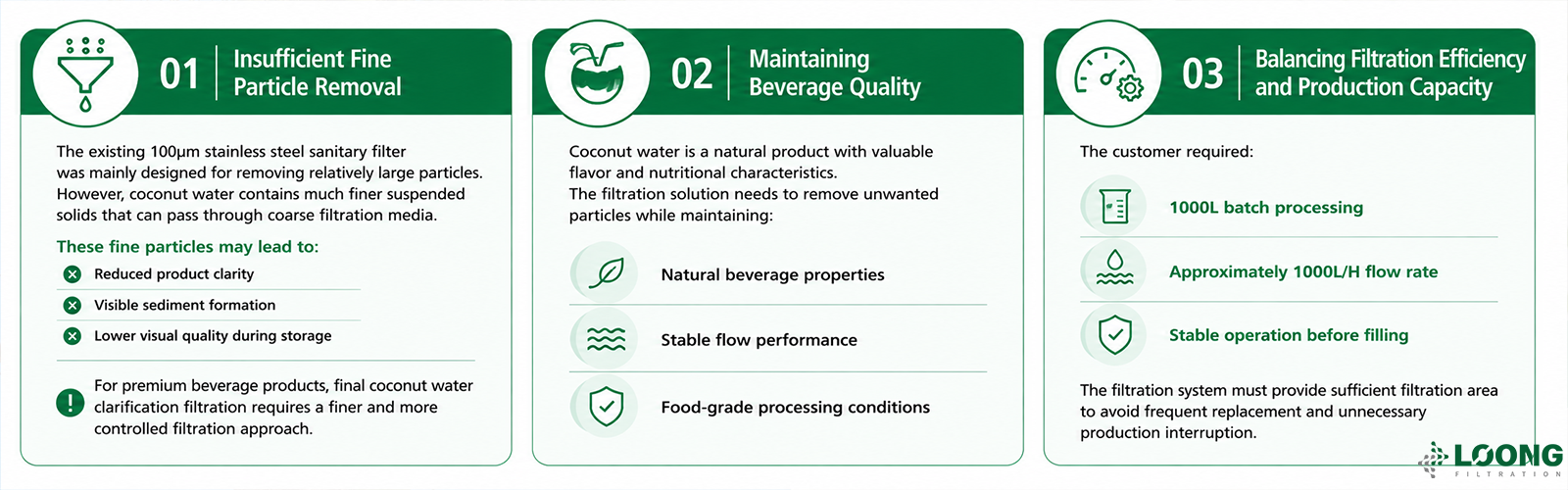

1.4 Specific Clarification Filtration Challenges

Challenge 1: Insufficient Fine Particle Removal

The existing 100μm stainless steel sanitary filter was mainly designed for removing relatively large particles.

However, coconut water contains much finer suspended solids that can pass through coarse filtration media.

These fine particles may lead to:

• Reduced product clarity

• Visible sediment formation

• Lower visual quality during storage

For premium beverage products, final coconut water clarification filtration requires a finer and more controlled filtration approach.

Challenge 2: Maintaining Beverage Quality

Coconut water is a natural product with valuable flavor and nutritional characteristics.

The filtration solution needs to remove unwanted particles while maintaining:

• Natural beverage properties

• Stable flow performance

• Food-grade processing conditions

Challenge 3: Balancing Filtration Efficiency and Production Capacity

The customer required:

• 1000L batch processing

• Approximately 1000L/H flow rate

• Stable operation before filling

The filtration system must provide sufficient filtration area to avoid frequent replacement and unnecessary production interruption.

1.5 Limitations of Previous Filtration System

The existing 100μm stainless steel sanitary filter could not fully satisfy the customer's final clarification requirements.

1.6 Customer Requirements Analysis

Based on the production conditions and quality expectations, the customer required a filtration solution with improved clarification performance and reliable operation.

II. LOONG Filtration's Integrated Solution

The Solution:

A Sanitary Stainless Steel Filtration System with PP Pleated Filter Cartridge and Lenticular Depth Filtration Technology

Based on the customer's production requirements, LOONG Filtration evaluated the coconut water clarification process and proposed two suitable filtration configurations.

Both solutions are designed to improve clarification performance compared with the existing 100μm stainless steel sanitary filter by providing finer particle retention and better filtration stability.

The final selection depends on the customer's production preference, maintenance requirements, and desired filtration performance.

2.1 Option 1: Multi-stage PP Pleated Filter Cartridge System

SS316 Stainless Steel Housing + 10μm & 5μm PP Pleated Filter Cartridge

The first solution utilizes a sanitary stainless steel filtration system with staged PP pleated filter cartridges.

The recommended configuration:

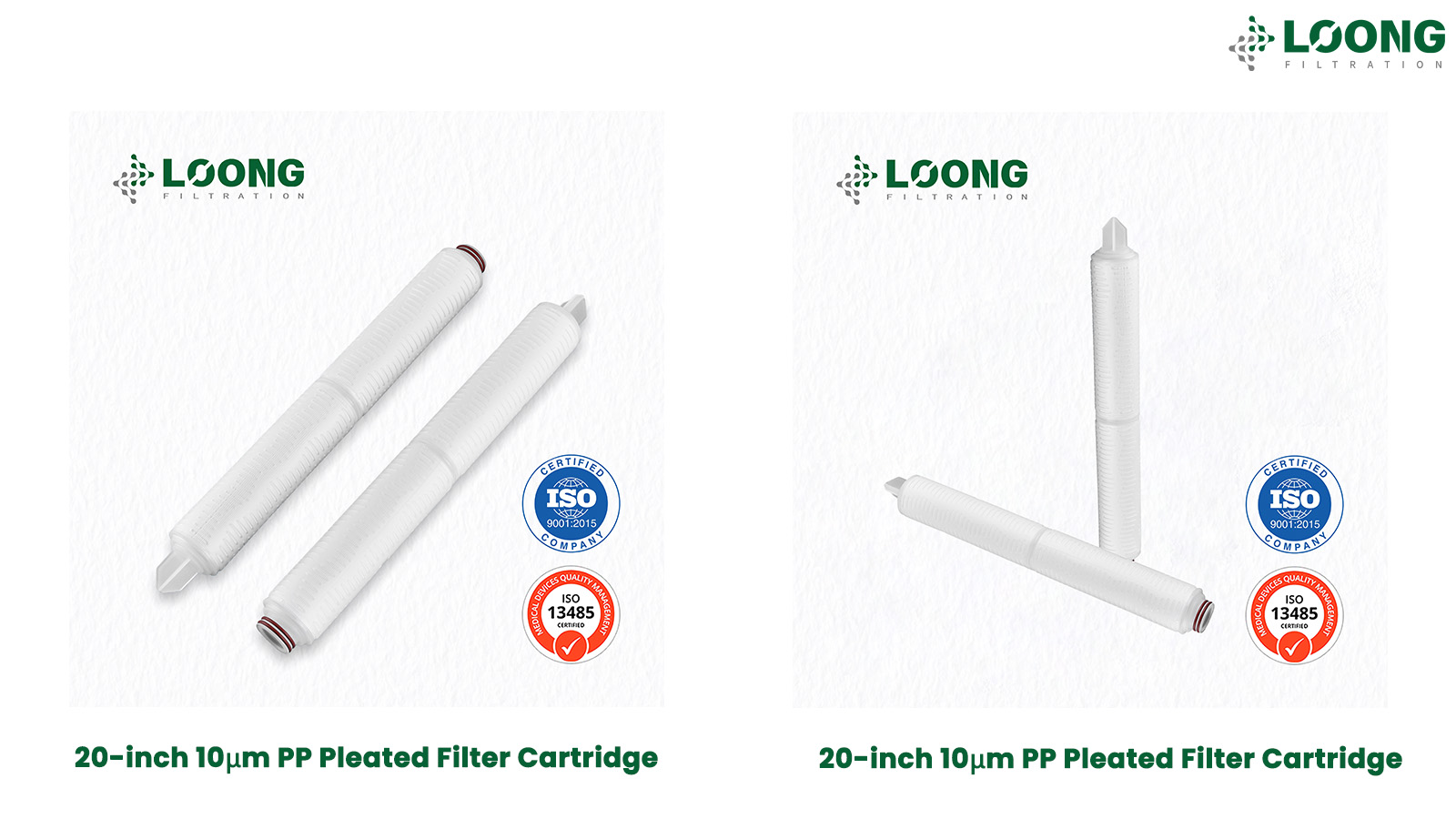

Stage 1: SS316 Stainless Steel Housing + 20-inch 10μm PP Pleated Filter Cartridge

↓

Stage 2: SS316 Stainless Steel Housing + 20-inch 5μm PP Pleated Filter Cartridge

This multi-stage filtration approach gradually removes suspended particles through different filtration levels.

The larger particles are captured in the first filtration stage, while finer particles are retained in the second stage, helping improve coconut water clarity before filling.

Technical Advantages of PP Pleated Cartridge Filtration

1. Multi-stage Particle Reduction

Compared with a 100μm sanitary strainer, PP pleated filter cartridges provide a significantly finer filtration structure.

The staged filtration design helps:

• Reduce fine suspended particles

• Improve beverage appearance

• Protect downstream filling processes

2. High Filtration Area and Stable Flow

Pleated filter cartridges provide a larger filtration area compared with traditional mesh filters.

Benefits include:

• Lower initial pressure drop

• Better dirt-holding capacity

• Longer service intervals

3. Sanitary Food & Beverage Application Design

The SS316 stainless steel housing is suitable for hygienic beverage processing applications.

Features include:

• Corrosion-resistant stainless steel construction

• Easy cartridge replacement

• Suitable for food-grade production environments

2.2 Option 2: Lenticular Depth Filtration System

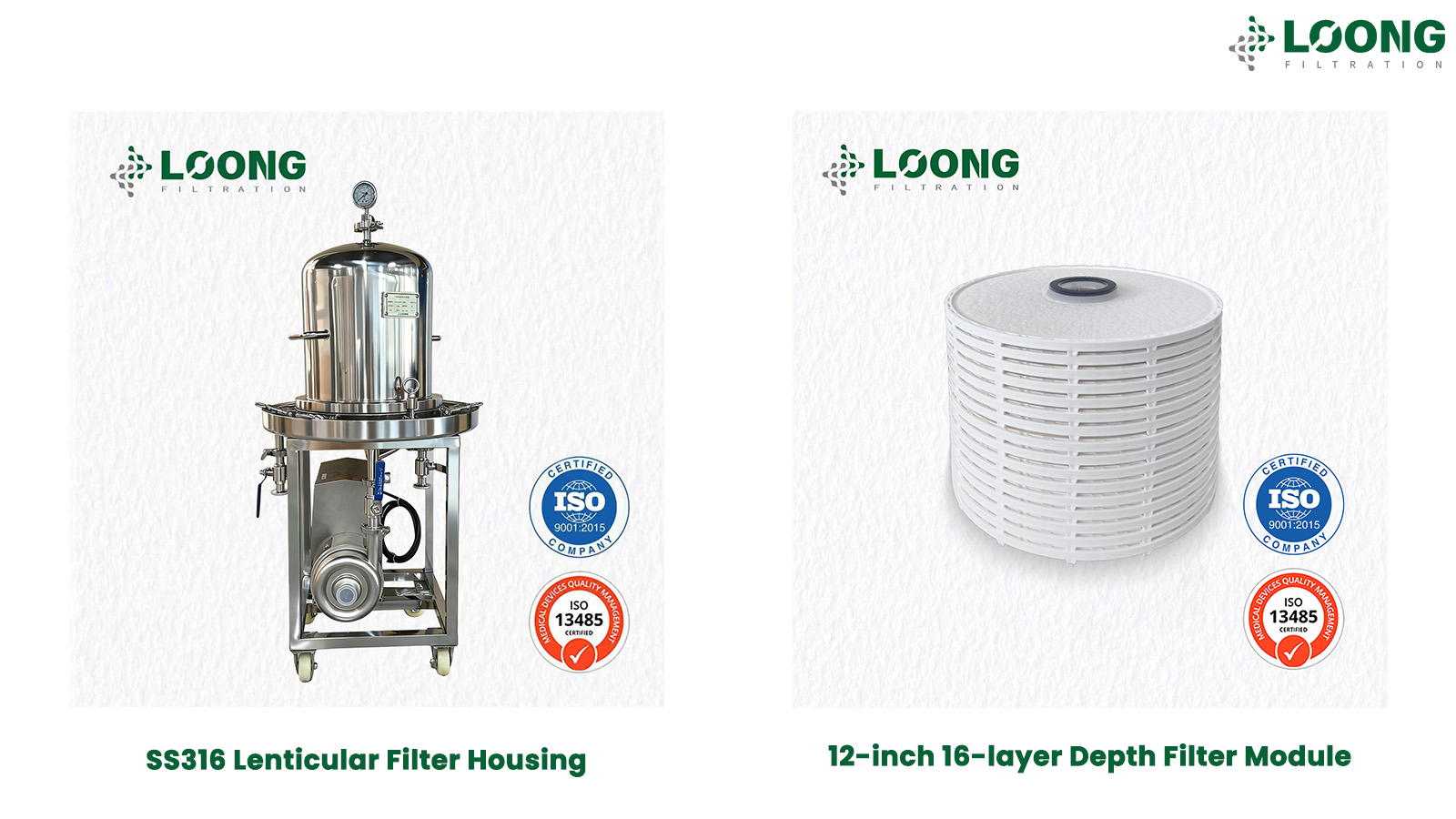

SS316 Lenticular Filter Housing + 12-inch 16-layer Depth Filter Module

The second solution uses LOONG Filtration's lenticular depth filtration technology.

Configuration:

SS316 Lenticular Filter Housing

12-inch Lenticular Filter Module

16-layer Depth Filter Media

0.5-0.8μm Filtration Rating

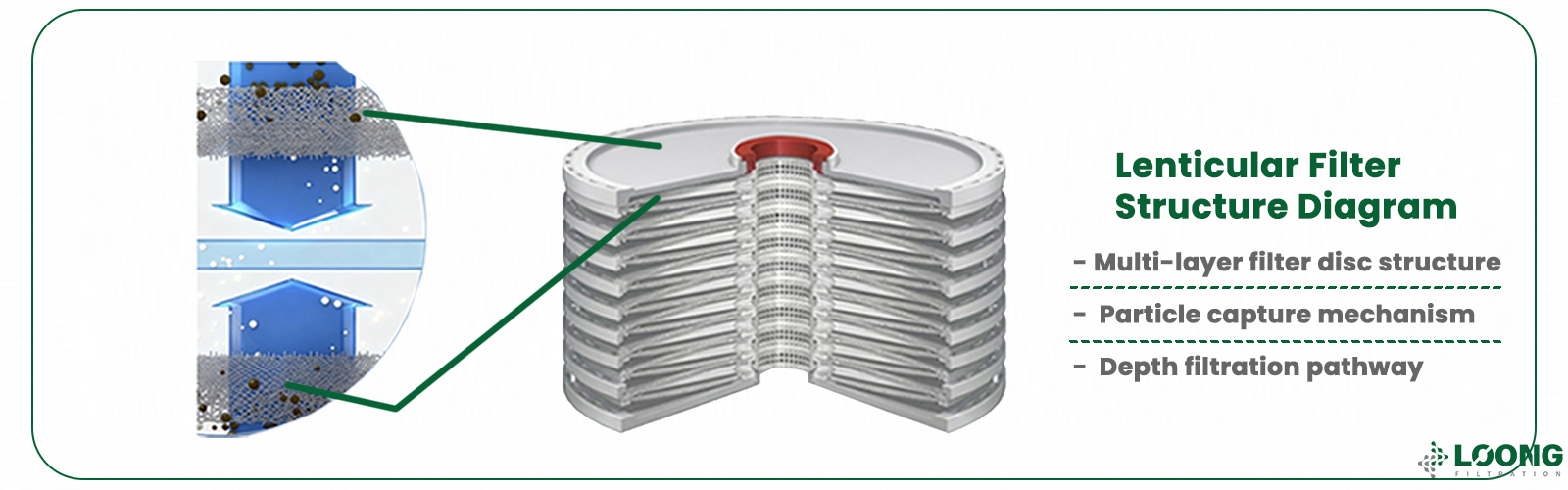

Unlike surface filtration methods, depth filtration captures particles throughout the thickness of the filter media structure.

This makes it particularly suitable for beverage clarification applications where fine particle removal and stable filtration performance are required.

Technical Advantages of Lenticular Depth Filtration

1. Depth Filtration Mechanism for Fine Particle Retention

Lenticular depth filters contain multiple layers of filtration media.

Particles are captured through:

• Surface interception

• Depth adsorption

• Mechanical retention

This allows effective removal of fine suspended particles throughout the filtration matrix.

2. High Dirt-Holding Capacity

Compared with conventional screen filtration, depth filtration provides a larger internal filtration structure.

Advantages:

• Higher contaminant holding capacity

• More stable filtration performance

• Reduced frequency of filter replacement

3. Beverage Industry Application Experience

Lenticular depth filters are widely used in food and beverage clarification processes, including:

• Beer clarification

• Wine filtration

• Juice clarification

• Edible oil filtration

• Natural beverage processing

2.3 Solution Selection Consideration

Both filtration solutions can improve the clarification performance of coconut water production.

The selection depends on different production priorities.

For specific applications, filtration parameters should be confirmed according to:

• Product composition

• Required clarity level

• Operating conditions

• Production capacity

Additional technical parameters should be confirmed according to specific operating conditions.

III. Value Delivered

Through LOONG Filtration's customized clarification filtration solutions, the customer can achieve improved filtration performance for premium coconut water production.

Improved Beverage Clarity

The upgraded filtration solutions provide finer particle retention compared with the previous 100μm stainless steel filter.

This helps:

• Reduce visible suspended particles

• Improve product appearance

• Enhance consumer perception of beverage quality

Reduced Product Deposits

Fine natural residues from coconut water may accumulate during storage.

The improved clarification filtration process helps reduce these particles before filling, supporting better product stability.

Enhanced Filling Process Reliability

A more suitable filtration system helps create a cleaner beverage stream before the filling stage.

Benefits include:

• More consistent product quality

• Reduced risk of visible contamination

• Improved production confidence

Flexible Filtration Solution Selection

LOONG Filtration provides different filtration technologies according to application requirements.

From PP pleated cartridges to lenticular depth filters, customers can select the most suitable solution based on:

• Filtration objectives

• Production scale

• Maintenance preference

• Product characteristics

IV. FAQ

1. Why does coconut water need clarification filtration?

Coconut water naturally contains fine suspended particles and plant-derived residues after processing. Clarification filtration helps remove these particles, improving product appearance and reducing sediment formation before filling.

2. Why cannot a 100μm stainless steel filter remove fine particles from coconut water?

A 100μm stainless steel filter is mainly designed for coarse particle removal. Fine suspended solids in coconut water can be much smaller than this opening size, requiring finer filtration technologies such as PP pleated cartridges or depth filtration.

3. What filtration rating is suitable for coconut water clarification?

The suitable filtration rating depends on product quality requirements, particle characteristics, and process conditions.

For coconut water clarification, filtration ratings may vary from several microns to sub-micron levels depending on the required clarity.

The optimal filtration rating should be confirmed through application testing.

4. What is the difference between PP pleated filtration and lenticular depth filtration?

PP pleated filter cartridges mainly use a membrane or depth structure with a defined filtration rating and are widely used for liquid clarification.

Lenticular filters use multiple layers of depth media, providing higher dirt-holding capacity and are commonly applied in beverage clarification processes.

5. Can lenticular filters be used in beverage applications?

Yes. Lenticular depth filters are widely used in food and beverage applications such as beer, wine, juice, edible oil, and natural beverage clarification.

They are suitable when stable particle removal and higher contaminant-holding capacity are required.

6. Is the filtration system suitable for food-grade production?

Yes. Stainless steel sanitary housings and food-compatible filter materials are commonly used for beverage filtration applications.

Material selection and certification requirements should always be confirmed according to specific regulations and production standards.

V. Why Choose LOONG Filtration?

LOONG Filtration provides professional filtration solutions for food and beverage manufacturers worldwide, combining filtration technology expertise with application engineering experience.

Food & Beverage Filtration Expertise

LOONG Filtration understands the challenges of natural beverage filtration, including:

• Fine particle removal

• Product clarity improvement

• Sanitary processing requirements

• Stable production operation

Advanced Depth Filtration Technology

With extensive experience in lenticular filtration and depth filtration applications, LOONG supports beverage manufacturers in selecting suitable filtration configurations for different products.

Customized Filtration Solutions

Different beverages have different filtration requirements.

LOONG provides application-based recommendations according to:

• Product characteristics

• Flow requirements

• Filtration objectives

• Operating conditions

Reliable Manufacturing Capability

LOONG Filtration focuses on producing industrial filtration products including:

• Lenticular Filter Modules

• PP Pleated Filter Cartridges

• Membrane Filter Cartridges

• Stainless Steel Filter Housings

• Complete Filtration Systems

For coconut water and other beverage clarification applications, LOONG Filtration provides reliable filtration solutions designed to improve product quality and production efficiency.

Contact LOONG Filtration to discuss your beverage filtration requirements and find the right clarification solution for your application.
