Coconut oil filtration plays an important role in controlling the clarity, consistency, and final quality of coconut oil. While coarse filtration can remove larger coconut residues, the final polishing stage presents a different challenge: removing very fine particles without causing excessive pressure drop or premature filter blockage.
For coconut oil producers, especially those processing high-quality virgin or refined coconut oil, the final filtration stage must be designed around the actual oil properties, operating temperature, viscosity, flow rate, particle loading, and required filtration performance.
This case study examines a coconut oil polishing filtration application in Vietnam and explains how LOONG Filtration approached the selection of a fine PTFE membrane cartridge and stainless steel multi-cartridge housing for a 2 TPH process operating at 40–60°C.
Coconut oil can be produced through different processing routes, including wet processing for virgin coconut oil (VCO), hot extraction, and refined, bleached and deodorized (RBD) processing.
Although the process conditions vary, filtration is an important separation step because coconut oil may contain residual solids, fine plant-derived particles, processing residues, or other suspended contaminants.

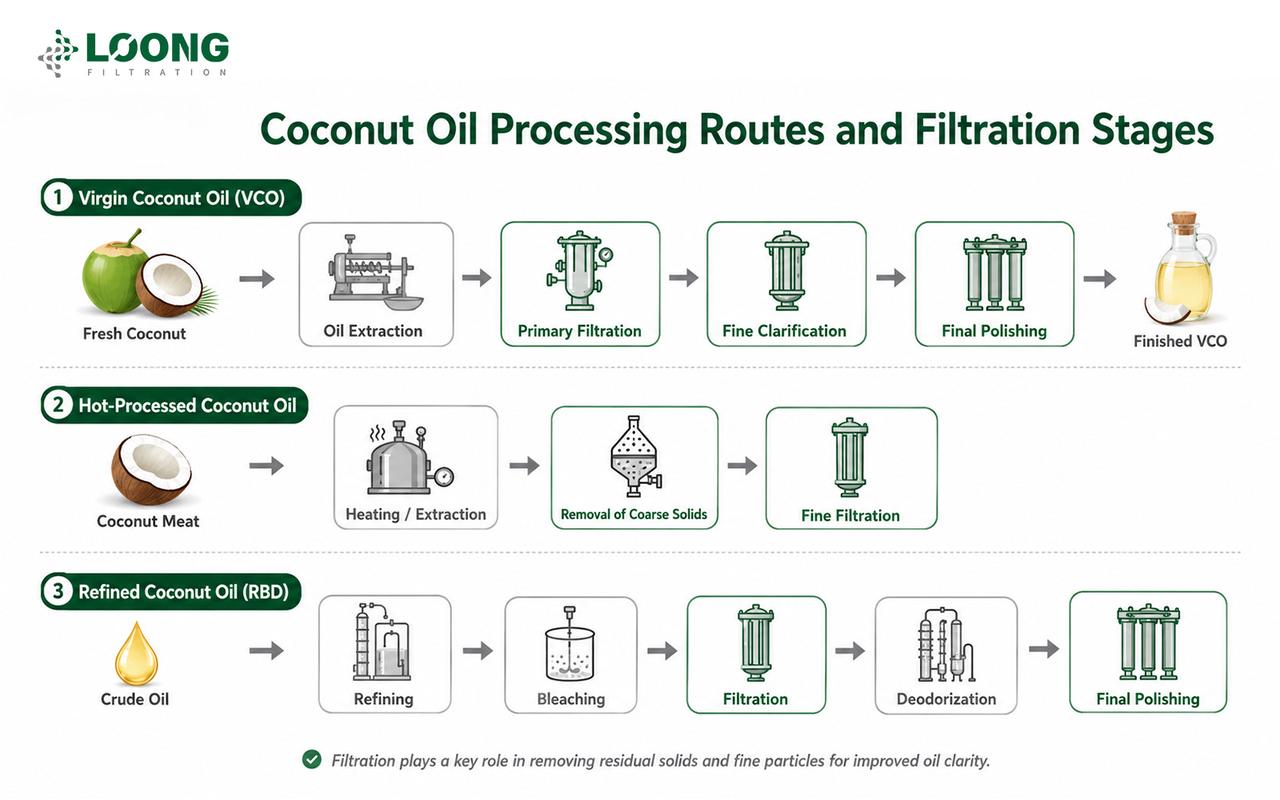

The appropriate filtration strategy depends on the production process and the desired final product quality.
Coconut Oil Type | Typical Processing Route | Typical Filtration Need | Main Filtration Objective |
Virgin Coconut Oil (VCO) | Wet / low-temperature processing | Primary + fine + polishing filtration | Remove coconut solids and fine suspended particles |
Hot-Processed Coconut Oil | Heating / hot extraction | Coarse + fine filtration | Remove thermally affected solids and process residues |
RBD Coconut Oil | Refining / bleaching / deodorization | Process filtration + final polishing | Remove refining residues and remaining particulates |
Virgin coconut oil is commonly produced from fresh coconut material through wet processing or other low-refining processes. Depending on the production route, the oil may contain fine coconut solids, protein-related residues, moisture, and other naturally occurring materials.

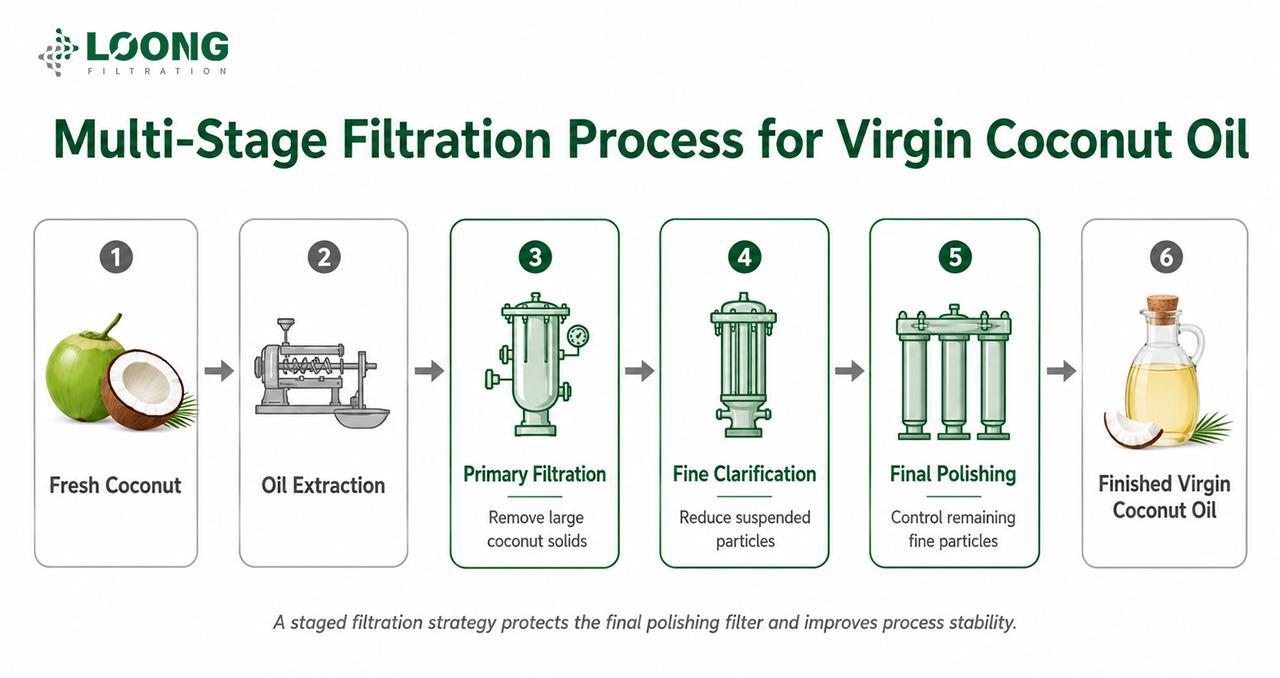

A typical filtration sequence can be represented as:
Fresh Coconut Processing → Oil Separation → Primary Filtration → Fine Clarification → Final Polishing → Finished VCO
The primary filtration stage is intended to remove relatively large coconut solids and process residues.
The objective is to reduce the bulk contaminant load before the oil reaches finer filtration stages.
Fine filtration can then reduce smaller suspended particles and residual haze-forming material.
This stage is particularly important because sending a heavily loaded stream directly to a very fine final filter can result in rapid pressure-drop increase and short filter life.
The final polishing stage provides a controlled barrier for the remaining fine particles and is generally used after upstream clarification has already reduced the majority of the contaminant load.
Microbiological control should be considered separately from particulate clarification.
A 0.22 μm filter rating should not automatically be interpreted as equivalent to sterilizing-grade filtration or as a guarantee of microbiological safety. The intended microbiological performance must be supported by appropriate filter validation and process controls.
The customer is a professional coconut-product processor in Vietnam producing high-quality coconut oil.
At the final stage of its production line, the customer required a dedicated coconut oil polishing filtration system to improve the consistency and visual clarity of the finished oil.
The main challenge was not the removal of large coconut solids. These had already been reduced during upstream processing.
The remaining challenge was the presence of very fine particles that could affect the appearance of the finished oil and place additional loading on the downstream polishing filter.
The customer therefore needed a filtration solution capable of handling hot coconut oil while maintaining stable flow and sufficient mechanical integrity.
Parameter | Value |
Product | Coconut Oil |
Appearance | White to pale-yellow semi-solid fat at room temperature |
Odor | Characteristic mild coconut aroma |
Melting Point | 20–28°C |
Refractive Index | 1.448–1.450 |
Flash Point | Approx. 113°C |
Relative Density | 0.916–0.920 |
Freezing Point | 22–26°C |
Iodine Value | 7–10 |
Acid Value | ≤1 |
Coconut oil undergoes significant changes in physical state around its melting and freezing range. As a result, operating temperature is an important consideration when selecting and sizing the filtration system.
Parameter | Customer Requirement |
Filtration Stage | Final Polishing / Fine Clarification |
Main Contaminants | Fine coconut-derived residues |
Target Filtration Rating | Approximately 0.2 μm |
Operating Temperature | 40–60°C |
Viscosity | 20–30 cP |
Operating Pressure | ≤5 bar |
Required Flow Rate | 2 TPH |
Housing Material | SS304 |
The customer's process therefore combines a relatively fine filtration target with a viscous oil stream, elevated operating temperature, and a 2 TPH flow requirement.
Additional technical parameters should be confirmed according to specific operating conditions.
The remaining contaminants were much finer than the solids normally removed during primary clarification.
The final polishing stage therefore required a much tighter filtration barrier while still maintaining acceptable process throughput.
The challenge was not simply to select the smallest available micron rating. The filter also needed to maintain appropriate pressure drop, sufficient service life, and structural stability at the process temperature.
The operating temperature was 40–60°C, while the oil viscosity was approximately 20–30 cP.
Although heating keeps coconut oil in a more fluid state, its viscosity is still considerably higher than water. The resulting hydraulic resistance must therefore be considered during cartridge and housing selection.
The filtration system had to operate at pressures of up to 5 bar while remaining mechanically stable at elevated temperature.
This makes the complete cartridge construction important, including the membrane, support structure, end caps, and sealing materials.
Because the application involves edible oil, all wetted components should be evaluated against the applicable food-contact requirements of the target market.
This includes the membrane, support materials, end caps, core, and elastomer seals.
Compliance should always be confirmed for the exact cartridge and housing configuration being supplied.
A final polishing filter is often exposed to the consequences of upstream filtration performance.
If the upstream process leaves too much particulate loading, the final cartridge may experience rapid pressure-drop increase and short service life.
Typical consequences include:
Rapid filter loading
Increased differential pressure
Short cartridge service life
More frequent replacement
Increased production downtime
Challenge | Process Cause | Potential Impact |
Fine particulate loading | Residual coconut-derived particles after upstream processing | Reduced product clarity |
Oil viscosity | 20–30 cP operating viscosity | Higher filtration resistance |
Elevated temperature | 40–60°C process temperature | Requires suitable cartridge materials |
Fine filtration target | Approximately 0.2 μm | Potentially higher pressure drop |
Final-stage fouling | Insufficient upstream clarification | Premature cartridge replacement |
This is why the final polishing stage should be designed as part of the overall filtration train rather than treated as an isolated filter-selection exercise.

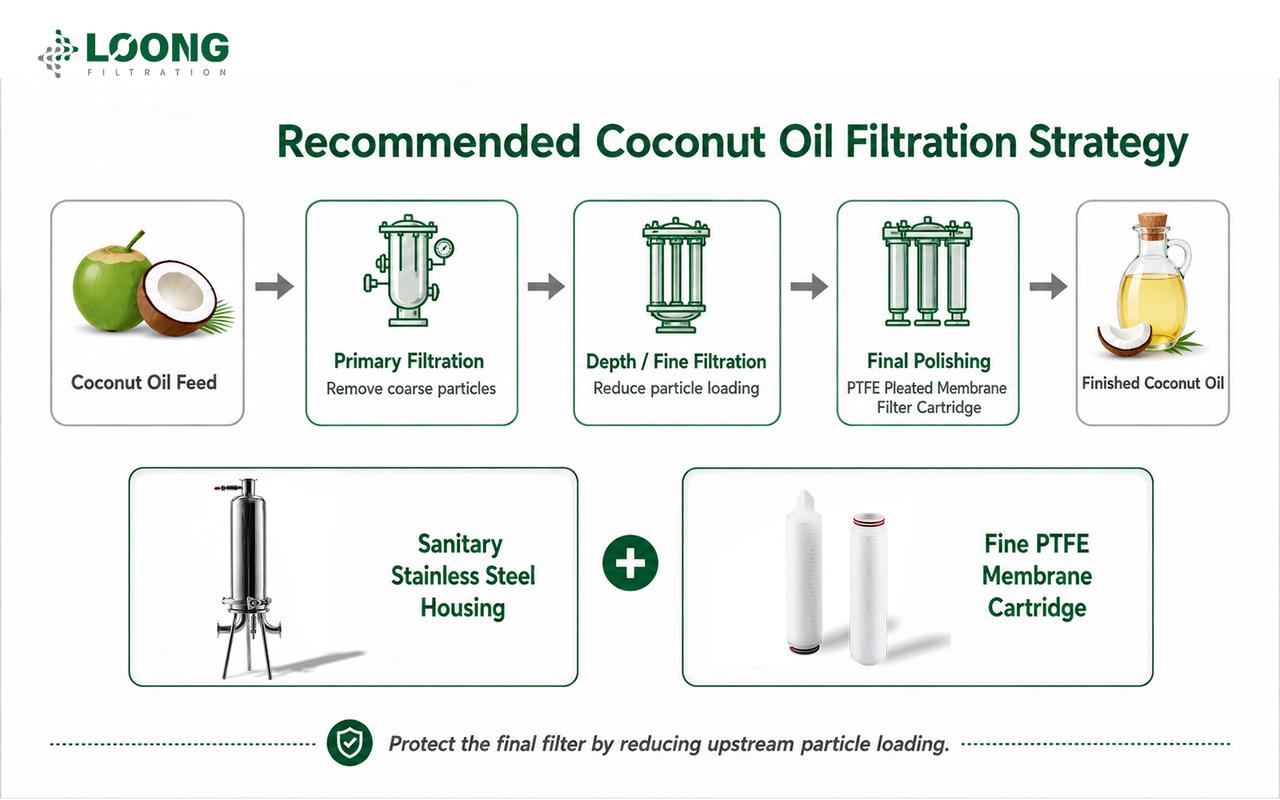

A practical strategy is:
Primary Clarification → Fine / Depth Filtration → Final Polishing → Finished Coconut Oil
For this specific application, LOONG Filtration proposed:
Sanitary Multi-Cartridge Stainless Steel Housing + PTFE Pleated Membrane Filter Cartridge

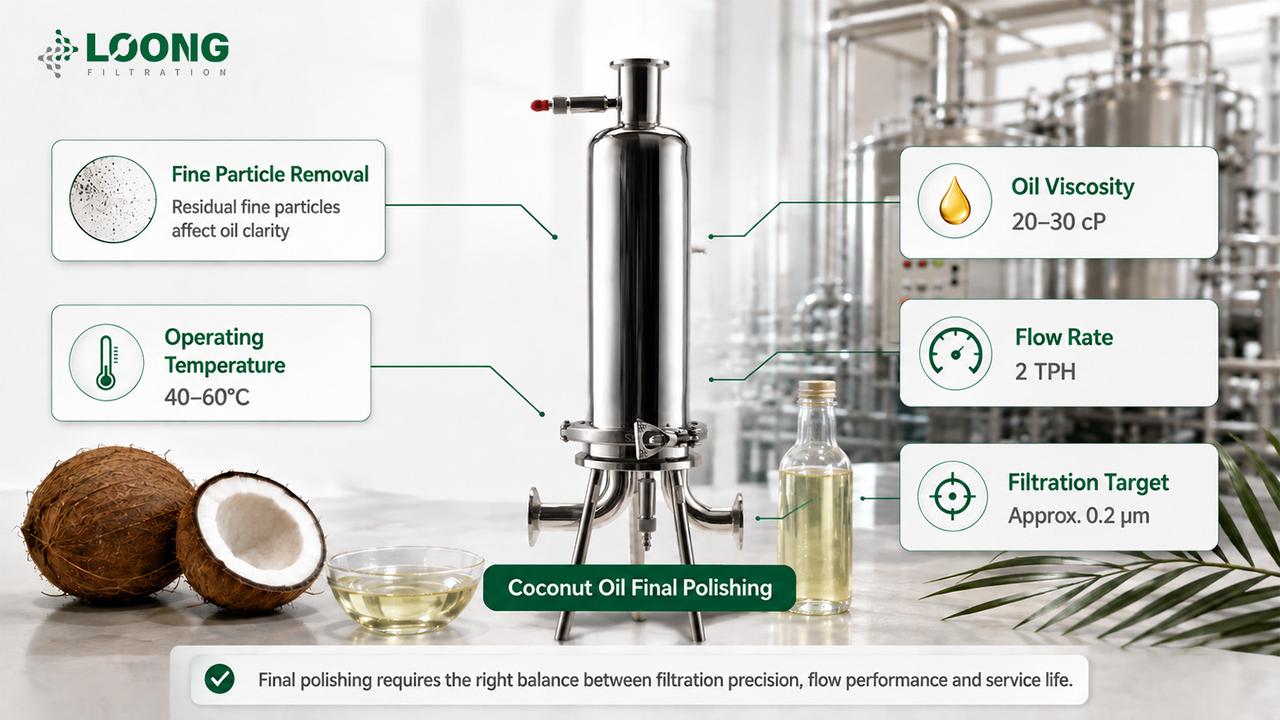

The proposed configuration was designed around the customer's:
2 TPH flow + 40–60°C operating temperature + 20–30 cP viscosity + approximately 0.2 μm fine-particle filtration requirement.
The selected cartridge uses a PTFE membrane with a nominally specified 0.22 μm rating for the targeted polishing application.
The actual retention performance should be interpreted according to the manufacturer's rating methodology and test data rather than assuming that the nominal pore-size value alone guarantees complete removal of every particle above that size.
PTFE is intrinsically hydrophobic and is widely used as a chemically resistant membrane material in demanding filtration applications.
For this application, PTFE provides a fine filtration medium with strong chemical resistance.
However, the suitability of the complete cartridge depends on the membrane, support materials, seals, temperature, pressure, and actual product compatibility.
The cartridge incorporates a PBT support/core structure.
The role of the support structure is to maintain the cartridge geometry and mechanical integrity under differential pressure and elevated temperature.
This becomes particularly important when coconut oil is filtered at temperatures up to 60°C.
A compatible elastomer seal, such as an appropriate Viton formulation, may be selected according to the customer's temperature, chemical, and food-contact requirements.
The exact grade and relevant compliance documentation should be confirmed for the final configuration.
For this customer's application, the requested housing material is SS304.
The final material selection should be confirmed against the actual product chemistry, cleaning procedure, operating temperature, and applicable sanitary requirements.
The 5 × 20-inch configuration provides multiple filter elements and a larger total filtration area than a single-cartridge housing.
The purpose is to distribute the process load across multiple cartridges rather than concentrating the entire flow through one element.
For a 2 TPH coconut oil application, the actual pressure drop should be verified using the filter manufacturer's flow-versus-pressure data for the specific oil temperature and viscosity.
A suitable sanitary housing should minimize areas where product can remain trapped and should provide practical access for cartridge replacement and cleaning.
Whether CIP or SIP is appropriate must be determined from the final housing design, cartridge materials, seals, cleaning chemistry, temperature, and the customer's validated cleaning procedure.
The filter selection was based on the combined requirements of:
Fine-particle removal + elevated process temperature + oil properties + mechanical stability + food-processing requirements
A fine-pore PTFE membrane can provide a suitable final polishing barrier when upstream processing has already reduced the bulk particulate load.
PTFE is known for broad chemical resistance and is widely used in demanding filtration applications.
The cartridge should always be evaluated as a complete assembly.
The temperature capability of the membrane, support material, end caps, seals, and housing must all be considered.
The exact maximum operating temperature depends on the cartridge construction.
A properly designed support structure helps the membrane maintain its geometry under differential pressure.
The PTFE membrane is being used as the final polishing stage, rather than as the first filter exposed to the full particulate load.
This distinction is critical for filtration stability.
A common mistake in filter selection is choosing a cartridge solely by micron rating.
In practice, filtration behavior is affected by the interaction of:
Micron Rating + Filtration Area + Flow Rate + Viscosity + Temperature + Particle Loading + Differential Pressure
For this application:
Flow rate: 2 TPH
Temperature: 40–60°C
Viscosity: 20–30 cP
Target filtration rating: approximately 0.2 μm
Housing configuration: 5 × 20-inch
Using multiple cartridges distributes the required process flow across a larger filtration area.
However, cartridge quantity should ultimately be confirmed using actual filtration data rather than calculated from water-flow ratings alone.
This is especially important because water-based cartridge flow ratings cannot simply be transferred to a viscous edible-oil application.
With appropriate upstream clarification and a properly sized final polishing stage, the customer can target several process improvements.
Reducing residual fine particulate matter can improve the visual clarity and consistency of the finished oil.
Using the final membrane stage after adequate upstream clarification helps prevent the polishing cartridge from carrying the entire particulate load.
Controlling upstream particle loading can help slow differential-pressure increase and improve the effective utilization of the final filtration area.
A multi-cartridge housing allows the available filtration area to be distributed across several elements.
A multi-cartridge stainless steel housing provides a practical configuration for routine filter replacement.
This application demonstrates an important principle:
The best final filter is not necessarily the filter with the smallest micron rating.
Successful coconut oil filtration requires the complete process to be considered.
Knowing what particles remain after upstream processing is more useful than simply specifying a very fine micron rating.
Coconut oil's physical properties change with temperature, and these changes directly affect filtration resistance.
A high-precision polishing cartridge should not be expected to perform the job of a primary filter.
Membrane material, support structure, end caps, seals, and housing all contribute to process performance.
Flow rate, temperature, viscosity, particle loading, target retention, and allowable pressure drop should all be considered.
Additional technical parameters should be confirmed according to specific operating conditions.
There is no universal best filter for coconut oil.
The appropriate filtration technology depends on the processing stage, oil temperature, viscosity, particulate loading, flow rate, required product clarity, and target filtration performance.
For final polishing applications with relatively low residual solids and demanding fine-particle removal, a pleated membrane cartridge can be considered. For higher solids loading, upstream depth or clarification filtration may be more appropriate.
PTFE membranes can be considered for oily process fluids because PTFE provides chemical resistance and hydrophobic characteristics.
However, complete cartridge compatibility depends on the membrane, support materials, seals, operating temperature, pressure, and food-contact requirements.
Not necessarily.
A 0.22 μm rating should be selected only when the process genuinely requires that level of fine-particle retention and the upstream filtration stage provides a sufficiently clean feed.
Selecting an unnecessarily fine filter can increase pressure drop and shorten service life.
Rapid fouling can result from:
Excessive particulate loading
Insufficient upstream clarification
Insufficient filtration area
High viscosity
Excessive flow
An unnecessarily tight filtration rating
The first step is usually to examine differential-pressure development during the filtration cycle.
The appropriate operating temperature depends on the oil properties and the complete filtration system.
In this case, the customer operates at 40–60°C.
The actual temperature limit must be verified against the selected cartridge construction, seals, housing, and cleaning conditions.
A single filter should not normally be expected to remove all contaminants.
A staged filtration process is usually more practical:
Primary Filtration → Fine Filtration → Final Polishing
Start with the actual process data:
Product type
Flow rate
Operating temperature
Viscosity
Particle loading
Target filtration rating
Allowable pressure drop
Existing housing
Batch or continuous-flow requirements
The required cartridge quantity and housing configuration can then be evaluated accordingly.
LOONG Filtration approaches edible-oil filtration as an application-engineering problem rather than simply a cartridge-selection exercise.
The company provides filtration products covering multiple stages of food and beverage processing, including depth filtration, lenticular filters, PP pleated filter cartridges, membrane filter cartridges, and stainless steel filter housings.
For coconut oil projects, the filtration configuration can be evaluated based on:
Product Properties → Process Conditions → Contaminant Profile → Filter Media → Cartridge Quantity → Housing Configuration
This approach helps customers avoid selecting a filter based only on a nominal micron number.
The final configuration should always be confirmed according to actual operating conditions and, where required, application testing.
Coconut oil filtration becomes particularly challenging at the final polishing stage, when the remaining particles are fine enough to affect product appearance while the oil is still viscous enough to create meaningful filtration resistance.
The solution is not simply to choose the finest available filter.
A more reliable approach is to design the complete filtration sequence around the actual process:
Primary Clarification → Fine Filtration → Final Polishing → Finished Coconut Oil
For the Vietnamese customer's application, the combination of a fine PTFE membrane cartridge and a multi-cartridge stainless steel housing was selected around a 2 TPH flow rate, 40–60°C operating temperature, 20–30 cP viscosity, and approximately 0.2 μm fine-particle filtration requirement.
The key engineering principle is:
Protect the final filter, provide sufficient filtration area, and select the membrane according to the actual process conditions.
For coconut oil producers experiencing haze, residual fine particles, high differential pressure, or short cartridge life, the best starting point is to evaluate the existing filtration process rather than simply replacing the current cartridge with a finer-rated filter.
Send LOONG Filtration your current filter model, flow rate, operating temperature, viscosity, and filtration problem. Our application engineers can evaluate the filtration configuration and recommend a suitable filter cartridge and housing combination for your process.
