In the world of craft beer, consistency and quality are paramount. While brewers meticulously focus on hops, malt, and yeast, one critical element often operates behind the scenes: compressed air filtration. Contaminated air can ruin a perfect batch, introducing off-flavors, aromas, and microbial spoilage that cost time and money.
This comprehensive guide will explore why a robust compressed air system is non-negotiable for modern breweries and how implementing the correct filtration protocol safeguards your product and your brand.
Compressed air is a workhorse in breweries, powering pneumatic valves, moving product between tanks, and, most critically, carbonating beer. When this air comes into direct contact with your product, any contaminants—oil, water, microbes—can be transferred directly into the beer.
The result? A potentially devastating loss of a batch and damage to your hard-earned reputation. Effective filtration is the final, crucial barrier that ensures the air meeting your beer is as pure as the ingredients themselves.

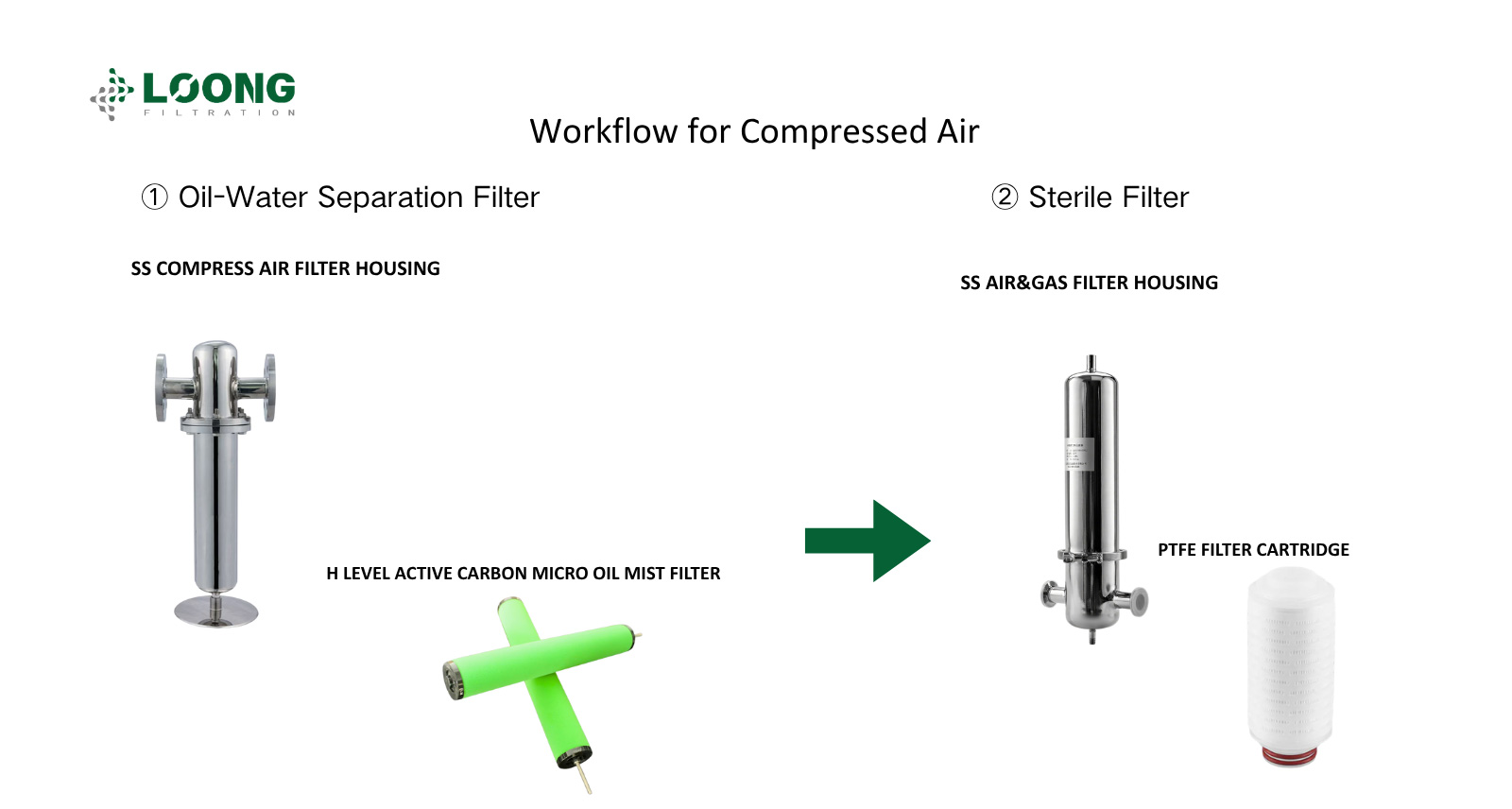

A professional compressed air system employs a multi-stage filtration process, with each grade of filter designed to remove specific contaminants.
• Function: Coalescing Pre-filter
• Removes: Bulk liquid water, large oil droplets, and solid particles larger than 1µm.
• Purpose: This initial filter acts as a coarse sieve, protecting the more delicate and expensive downstream filters from being overwhelmed and clogged too quickly.
• Function: General Purpose Coalescing Filter
• Removes: Finer water and oil aerosols (tiny suspended droplets).
• Purpose: It provides the primary level of coalescing filtration, achieving a significantly higher level of purity and further preparing the air for the final polishing stages.
• Function: High-Efficiency Coalescing Filter
• Removes: Micron and sub-micron sized oil and water aerosols.
• Purpose: This is the final polishing step for liquids. After a T-grade filter, the air is considered "technically oil-free" concerning liquid oil, meeting the stringent ISO 8573-1 Class 2 standard for oil content.
• Function: Activated Carbon Filter (or Oil Vapor Removal Filter)
• Removes: Oil vapors and hydrocarbon odors.
• Purpose: Ordinary coalescing filters cannot capture oil that has vaporized due to the heat of compression. The H-grade filter uses activated carbon to adsorb these vapors, ensuring the air is truly odor-free and meets the highest purity standards (ISO 8573-1 Class 1 or 0).
Even after passing through the C/A/T/H sequence, air can still harbor microorganisms. For breweries, a final sterilizing-grade membrane filter like LOONG's PTFE Filter Cartridge (typically 0.01 µm) at the point of use is essential.
This filter acts as an absolute barrier to bacteria and yeast, ensuring the air carbonating or pushing your beer is microbiologically stable. This is the industry-standard and most reliable method for achieving sterility, as steam-sterilizing entire compressed air pipe networks is often impractical and unsafe.
Ignoring compressed air quality poses direct risks to your business:
• Off-Flavors & Aromas: Oil and hydrocarbon vapors can impart unpleasant chemical or rancid notes.
• Microbial Contamination: Yeast and bacteria from the air can lead to over-carbonation, haze, and spoilage, causing gushing bottles or sour, unintended flavors.
• Inconsistent Product: Variability in air quality leads to variability in beer, damaging customer trust.
• Increased Costs: Lost batches, recalls, and brand remediation are far more expensive than investing in a proper filtration system.
1. Audit Your System: Understand your compressor type (oil-injected vs. oil-free) and existing filtration.
2. Implement the Full Sequence: Don't skip stages. A proper C → A → T → H sequence protects your valuable sterilizing filter.
3. Prioritize Point-of-Use Filtration: Always install the sterilizing-grade filter immediately before the air touches your beer.
4. Stick to a Maintenance Schedule: Filter elements are consumables. Create a proactive replacement plan based on pressure differential readings and time to avoid unexpected failures.
In the competitive brewing industry, excellence is found in the details. A sophisticated compressed air filtration system is not an optional expense; it is a vital component of quality assurance. By understanding and implementing the C/A/T/H + Sterilizing Grade filtration protocol, you protect the integrity of your beer, ensure batch-to-batch consistency, and ultimately, safeguard the reputation of your brewery.
Ready to ensure every breath your beer takes is pure? Contact our LOONG filtration experts today for a free consultation to design a system that protects your product and your profit.
